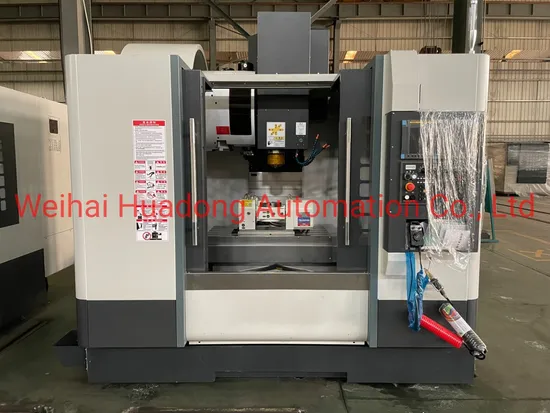

5 Axis Machine Center Vertical CNC Milling Machine
| US$20,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC850
Type
Vertical Machining Center
Object
Metal Milling
Structure
Desktop
Milling Cutter Type
Face Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle
Taiwan
Leadscrew
Taiwan
Rotary Table
Taiwan
Controller
Fanuc, Siemens
Transport Package
Wooden Pallet
Specification
5000*3200*3200
Trademark
HDCNC
Origin
China
HS Code
8457101000
Production Capacity
5000
Product Description
1.machine structureI.Disc type manipulator ATC efficiently improves machine working efficiency.
II.XYZ axis adopts precision roller linear guideway,which is with big load capacity,realize rapid movment.
III.Built-in type and high rigidity spindle ensure and high efficiency cutting features.
IV.wide and solid bed and thickened and lengthened saddle ensure machine with high stability and heavy-duty cutting features.
V. XYZ axis adopts precision double-nut ball-screw transmission,and imported special bearing,pre-load assembly,all factors organize high rigidity and stable transmission system.
2.Machine model
| MODEL | Unit | VMC850S | VMC850 | VMC855 | VMC1060 | VMC1160 | VMC1260 | VMC1370 | VMC1380 | VMC1580 |
| Table size | mm | 800*500 | 900*500 | 1000*550 | 1200*600 | 1200*600 | 1200*600 | 1400*700 | 1400*800 | 1600*800 |
| Max.load | kg | 400 | 500 | 500 | 800 | 800 | 800 | 1200 | 1300 | 1500 |
| No.-W*distane | mm | 5-18*90 | 5-18*100 | 5-18*110 | 7-18*110 | 7-22*110 | ||||
| XYZ travel | mm | 650/500/500 | 800/500/500 | 800/550/550 | 1000/600/600 | 1100/600/600 | 1200/600/600 | 1300/700/700 | 1300/800/700 | 1500/800/700 |
| spindle nose to table surface | mm | 120-620 | 150-650 | 120-670 | 120-720 | 120-720 | 120-720 | 100-800/60-720 | 185-885 | 150-850 |
| spindle center to Z axis guide surface | mm | 550 | 570 | 595 | 650 | 650 | 650 | 750 | 850 | 855 |
| 3 axis rapid speed | m/min | 48/48/48 | 48/48/36 | 36/36/36 | 24/24/24 | 20/20/20 | ||||
| Max.spindle speed | rpm | 10000 | 8000 | 8000/6000 | 8000/6000 | 6000 | ||||
| spindle power | kw | 7.5/11 | 11/15 | 11/15or15/18.5 | 15/18.5 | 15/18.5 | ||||
| Tool holder type | BT40 | BT40/BT50 | BT50 | |||||||
| Pull nail | 45° | |||||||||
| ATC capacity | 24T | |||||||||
| Max. diameter tool*length | mm | Φ85*350 | Φ85/Φ125*300 | Φ125*300 | ||||||
| CNC system | FANUC SIemens and other system | |||||||||
| machine weight | kg | 4900 | 5300 | 5800 | 6800 | 7000 | 7500 | 10800 | 13800 | 14300 |
| machine overall size(L*W*H) | cm | 210*260*265 | 270*228*258 | 320*255*270 | 350*270*280 | 400*270*280 | 41*270*280 | |||
3.Standard accessories
| front row chip full cover sheet metal without the chip | drawer type water tank and chip box | backward impact chip washing device |
| Full -function operation panel and MPG | ATC | Belt drive spindle |
| sprinkler cooling at spindle side | Air cooling system | heat exchange device |
| water gun,air gun | working light alarm light |
4.Optional accessories
| central outlet function of spindle | 3 axes linear scale | the fourth axis function |
| spindle cooling system | oil-water separation device | spindle direct connection 12000rpm |
| chain type chip remover |
