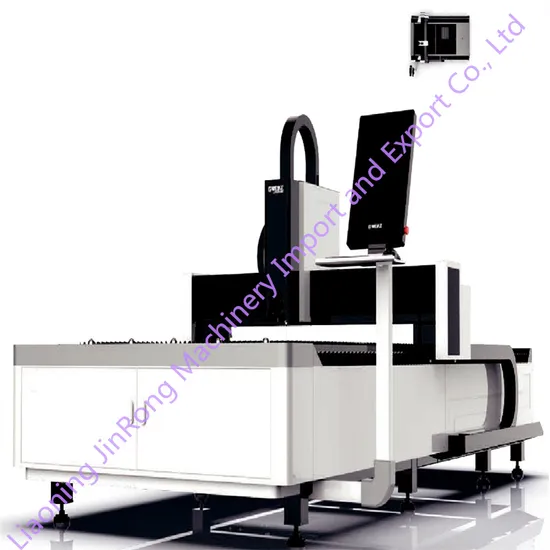

Lf3015e Series CNC Laser Cutting Machine From Cynthia

Product Description

Product Description

Description of Main Configuration
Machine Bed
The current mainstream bed structure, high stability;
Stress relief annealing treatment, high mechanical strength, not easy to deformation;
The interior of the bed is equipped with reinforcing bars to increase the strength and tensile strength of the bed and effectively avoid the deformation of the bed;
The weight of the bed, the vibration of the machine is small, the shock resistance is good, and the cutting accuracy is improved.
Core Process and Function

Function point	Function
Focus control	After connecting the auto focus head, it can automatically zoom, and the perforation efficiency is high
Secondary and tertiary	Enable the secondary and tertiary perforation functions for high perforation efficiency
Noninductive perforation	Thick plates can be perforated quickly
Automatic group punching	After setting the number of holes, group holes according to the number of holes
Prepunch	Enable pre-perforation for more stable perforation
Lead technology	Enable the lead process, add leads, and avoid cutting waste materials
Real-time calibration	It can be calibrated by software or one button of the handle, convenient and fast
Air movement to avoid obstacles	Avoid obstacles when moving to protect the cutting head
Speed power & Frequency curve	Enable the power/frequency curve function
Straight line/runway/arc	Through the scanning mode, the linear flying cut is performed
Round hole/radar	By scanning, the circular fly cut is performed
File	Process parameters can be backed up to a folder to prevent parameter loss
Manual edge finding	Set P1/P2 two point manual edge seeking, easy to operate without moving the plate
Four point automatic edge finding	Automatic four-point edging with height-adjuster, no manual operation required
One-click cutting board	One key automatically cut the plate, convenient and fast
System control - Parallel switching	The system controls the automatic exchange of the upper and lower platforms to avoid wasting the feeding time
System control - Unlimited roll	System control coil platform automatic feeding processing, processing efficiency is high
Cleaning nozzle	Automatically cleans the slag on the nozzle for more stable cutting
Calibration monitoring	Export the calibration result and view the calibration data
Blow protection	Enable gas alarm to prevent no gas
Barometric correction	Air pressure correction is enabled for more accurate blowing pressure

Main Frame Welding

The main frame of the bed body is welded using carbon dioxide shielded welding, which has many advantages such as stable welding process, no internal defects, and minimal splashing. Currently, it has become the most important welding method for black metal materials.

Stress Relief Annealing

To eliminate the material stress caused by welding, the super-large fuel heating annealing furnace is used to carry out 600° stress relief annealing for multiple main frames. Furnace temperature is stable and uniform electronic monitoring welding stress removal is complete, quality is guaranteed. Non-ordinary small electric furnace single annealing and temperature uneven stress relief can not guarantee complete elimination.
Rough Machining

Rough machining is aimed at quickly cutting off the remaining amount of the blank. During rough machining, a large feed rate and maximum cutting depth should be selected to remove as many chips as possible in a short period of time.
Vibration Aging

It is a method of eliminating residual internal stresses inside the workpiece by vibration, which causes the vector sum of residual internal stresses and additional vibration stresses inside the workpiece to exceed the yield strength of the material, resulting in slight plastic deformation of the material, thereby relaxing and reducing the internal stresses inside the material.
Natural aging

The bed is left in the open air for more than 1 month. Clear the bed multiple times resulting in repeated temperature stress. The residual stress is relaxed and the dimensional accuracy is stabilized. Improve the stiffness, increase the deformation resistance, ensure the dimensional stability of the bed.
Finish Machining

Finish machining uses CNC five sided machining centers to process surfaces with high precision requirements such as guide rails and racks on the bed to obtain high-quality installation surfaces, ensuring the cutting accuracy of the machine tool.
Product Parameters
Fiber Laser Cutting Thickness and Speed Parameters

Material	(mm) Thickness	1000W	1500W	2000W	3000W
		Speed	Speed	Speed	Speed
		(m/min)	(m/min)	(m/min)	(m/min)
Carbon Steel Air	1	12.0-15.0	15.0-20.0	25.0-30.0	28.0-35.0
	2	3.5-4.5	5.0-8.0	7.0-10.0	8.0-12.0
	3		1.5-3.0	2.0-4.0	2.5-4.5
	4				1.5-2.3
Carbon Steel O2	1	15.0-22.0	18.0-25.0	22.0-30.0	25.0-38.0
	2	3.5-5.0	3.8-5.0	5.0-6.0	5.5-7.0
	3	2.5-3.85	2.8-3.8	3.5-4.3	3.6-5.0
	4	2.0-3.3	2.3-3.5	2.8-4.0	3.0-4.5
	5	1.4-2.0	1.6-2.5	2.5-3.0	2.5-3.3
	6	1.2-1.65	1.4-1.8	2.2-2.5	2.3-2.8
	8	0.9-1.32	0.9-1.3	1.3-1.8	1.8-2.2
	10	0.6-0.9	0.8-1.2	1.2-1.5	1.2-1.6
	12	0.4-0.7	0.7-1.0	0.8-1.0	1.0-1.3
	16		0.5-0.7	0.6-0.8	0.6-0.9
	20				0.5-0.8
Stainless Steel N2	1	10.0-13.2	15.0-27.5	22.0-31.0	25.0-30.0
	2	2.0-4.5	7.0-8.6	10.0-13.2	15.0-18.0
	3	0.6-1.32	2.5-4.0	5.0-6.6	7.0-8.0
	4		1.0-1.65	1.5-2.2	5.0-6.0
	5		0.6-0.9	1.0-1.3	2.5-3.0
	6		0.4-0.7	0.6-0.9	1.5-2.0
	8			0.4-0.7	0.5-0.8
	10				0.3-0.4
Aluminum N2	1	10.0-13.2	15.0-27.5	22.0-31.0	25.0-30.0
	2	2.0-4.5	7.0-8.6	10.0-13.2	15.0-18.0
	3	0.6-1.32	2.5-4.0	5.0-6.6	7.0-8.0
	4		1.0-1.65	1.5-2.2	5.0-6.0
	5		0.6-0.9	1.0-1.3	2.5-3.0
	6		0.4-0.7	0.6-0.9	1.5-2.0
	8			0.4-0.7	0.5-0.8
	10				0.3-0.4
Brass N2	1	14.0-20.0	15.0-22.0	20.0-27.0	20.0-28.0
	2	3.0-4.5	4.0-7.2	7.7-8.8	7.0-13.2
	3	1.0-1.55	1.1-1.5	3.0-4.5	5.0-7.2
	4		1.0-1.2	1.3-1.8	2.5-3.0
	5		0.6-0.9	0.8-0.9	1.6-2.0
	6			0.4-0.6	0.8-1.2
	8				0.3-0.4

Cost Analysis of 3000W Fiber Optic Machine Usage

Auxiliary gas energy consumption		Air cutting (cutting stainless steel plate with air compressor)	Oxygen cutting (cutting stainless steel with O2)	Nitrogen cutting (N2 cutting stainless steel)
	Optical Maser	9kw	9kw	9kw
Electrical power dissipation	Water chilling unit	5kw	5kw	5kw
	Machine tool host	10kw	10kw	10kw
	Dust removal equipment	3kw	3kw	3kw
Vulnerable part		2.5 RMB/h	2.5 RMB/h	2.5 RMB/h
Gas consumption		15kw	(About)10RMB/h"	(About)35 RMB/h
Total electric power		42 kw	27kw	27.7 kw
Average power (60% cutting efficiency)		42x60%=25.2kw	27x60%=16.2 kw	27x60%=16.2 kw
Total operating cost (1RMB/kwh)		25.2+2.5=27.7 RMB/h	"16.2+10+2.5=28.7 RMB/h"	"16.2+35+2.5=53.7 RMB/h"

The above data is for reference only
Equipment Configuration List

Equipment Name	Qty	Brand
Laser Device	1 Set
Laser Cutting Head	1 Set
Machine bed	1 Set
X/Y X/Y axis High precision rack	Form a complete set
Reducer	Form a complete set
Precision Linear Guide Rail	Form a complete set
Servo motor and servo driver	Form a complete set
Servo motor and servo driver	1 Set
Servo motor and servo driver
Proportional valve	1 Set	Japanese CKD
Machine tool accessories	Form a complete set
Numerical control system	1 Set
Precision chiller	1 Set
Small material collection	1 Set
Dust extraction device	1 Set	Equipment Matching
Height adjustment system	1 Set
Beam	1 Set	Steel Gantry
Oil injection device	1 Set	(Manual)
Note: 1. If customers purchase the above devices by themselves, they must purchase the designated brand and model. If the brand is changed at will, the overall performance of the equipment will be adversely affected, and the consequences will be solely responsible for the customer. 2. The warranty period of the whole equipment is one year, except for the following factors, such as: common consumables and general wearing parts, force majeure factors (natural disasters), social abnormal events, man-made damage, common illegal operations, etc.

Technical Parameter

Technical index	Parameter
Equipment type	LF3015E
Processing format	1550*3050mm
Laser power	1000W/1500W/2000W/3000W( ) (Optional)
Apparent dimension	4525*2767*1923mm
Repeated positioning accuracy	±0.02mm
Rated voltage and frequency of power supply	Three-phase four-wire AC 380V,50Hz/60Hz
Support graphics format	Support DXF, PLT, AI, Gerber files, NC codes and other graphic formats of Auto CAD software
