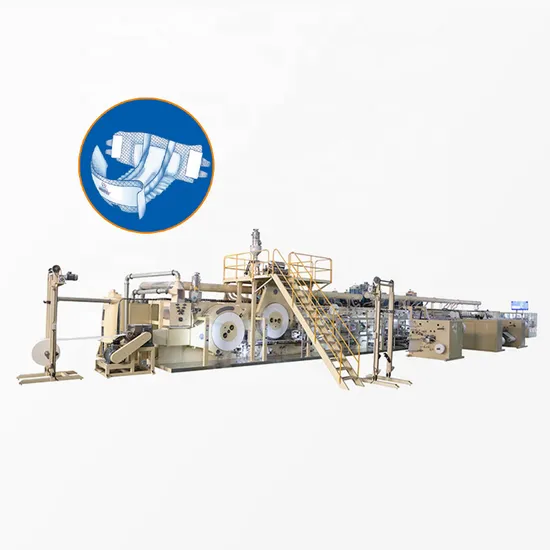

Italy Technology Adult Diapers China Made High Speed Good Quality with Full Servo Full Automatic Pull up Baby Diaper Machine
| US$300,000.00 | 1 Piece (MOQ) |
Basic Info.
Product Object
Adult
Designed Speed
150-400pcs/min
Production Speed
150-400pcs/min
Computer Control Panel
Computer Control Panel
Product Specification
Adult Diaper Machine
Automatic Grade
Full Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
to Be Defined
Finished Product
Adult Diaper
Process
Paper Machine
Usage
Adult Diaper Machine
Type
Adult Diaper Machine
Computerized
Yes
Transport Package
Wooden Box for Diaper Machine
Specification
CE & ISO
Trademark
JWC diaper machine
Origin
China
HS Code
84418090
Production Capacity
20 Sets
Product Description
Italy Technology Adult Diapers China Made High Speed Good Quality with Full Servo Full Automatic Pull up Baby Diaper MachineProduct Description
This I shape Adult Diaper Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This I sahpe Adult Diaper Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100% full automatic control.
| Adult Diaper Machine Mechanical driving system: 1.Main machine adopts servo motors driving. 2.Adopted imported convey belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation and good products. 3.The key parts adopt ball cage coupling, can improve the parallelism between upper and bottom cutting rollers, reduce the transmission error, more stable 4.The thickness of inside and outside plate use 50mm, 45 # hardening and tempering. 5. Using high quality HSS, ensure the life of cutter. Customers also can choose M7 material The key position tool transmission adopts planetary reducer drive, free maintenance, zero error. | Adult diaper machine Mechanical Parts: 1. Saw mill High-speed Fabric Crusher, crushing capacity 600KGS/hour. 2. Fluff Pulp Drum-type Forming Equipment 3. SAP Application Devices. Controlled by servo motor and quantity can be adjusted on the screen. 4. High-Pressure Absorbent Fan 5. Cotton Core Embossing Roller 6. Cotton Core Short Cutter 7. 3-cores Pressing Roller 8. Transfer Flat Cutter 9. Waistband supplying and cutter 10. Frontal Tape Cutter 11. Leak-proof Embossing Roller 12. End & Side Seal Embossing Roller 13. Side Tape Cutter 14. Edge Forming Cutter 15. Final Forming Cutter 16. 3-Forlding 17. Side Wastage Crushing 18. Safety Protection Door 19. dust collection system 20. Raw materials online lifting system. |
| Designed speed | 300m/min |
| Working speed | 200-250PCS/min (M size) |
| Qualified rate | 97% (The rate is compared with qualified products with gross output products within7.5 hours) |
| Efficiency | ≥ 85%(The rate is compared real output with principle output within 7.5 hours) |
| Installed capacity | 400KW (Including hot melt system) |
| practical capacity | 40KW(Including hot melt system) Breaker Capacity: 600A |
| Electric power supply | Three-phase & four-wire 380V/50Hz(Ground wire) |
| Electric wire | 3x120mm2+1x50mm2+1x25mm2 |
| Lowest barometric pressure | 8 kg/cm2 |
| Air compressor | >0.6Mpa, 1.8m3/min, 22kw(to be reference) |
| Gross weight | 102T |
| Noise | <85db(a)<> |
| Machine size | (37x9mx5.5)M |
| Working space | (42x13x6)M |
| Color | Silver (According to order) |
| Range of products | XL\L\M\S |
Final products&raw materials
