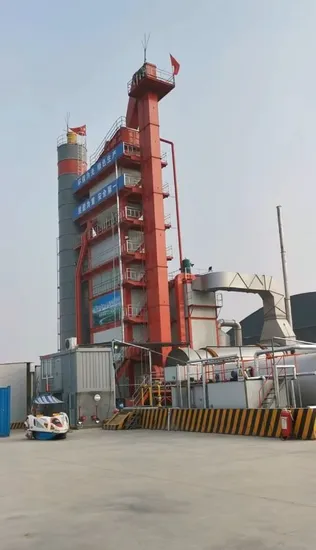

Modular Customizable Environment-Friendly Asphalt Mixing Plant

Product Description

Product introduction: To pioneer road construction industry with the philosophy of high efficiency, low energy and eco-friendliness
The LB series asphalt mixing plants from Wuxi Taite Road Construction Machinery are developed with state-of-the-art technologies, absorbing the merits of other asphalt mixing equipment in and outside China, and widely used for asphalt pavement of variously-graded highways, airports, dams and other places.
Highly stable and reliable: based on EU standards and designed with China plus EU expertise, with the electromechanical system composed of parts from renowned brands
Fully modular design: modular design and quick installation technologies make transportation and installation easier and quicker.
Customer-centric technical support throughout the lifecycle: providing technical support for system upgrades such as hot recycled asphalt, modified asphalt, SMA (Stone Mastic Asphalt, a.k.a. stone-matrix asphalt) system and recycled dust treatment apparatus.
Product features:
Superior mixing performance
Excellent economic performance
Modular cold aggregates feeding system
Efficient and reliable drying drum
Precise and stable weighing system
Oil/Gas dual-purpose burner, and NCB series pulverized coal drying system
Screening system based on rigorous testing
Dual-layer high capacity hot aggregate silo
Hot mix asphalt hoisting system
Dusting system
Green and environment-friendly
Pneumatic control system
Asphalt mixing control system
Product Technical Parameters:

Model	Productivity	Mixer capacity	Weigh accuracy			Power rating	Fuel consumption
			Aggregates	Fillers	Asphalts
LB1000	80t/h	1000kg	±0.3%	±0.2%	±0.1%	255KW	6.0kg/h
LB1500	120t/h	1500kg	±0.3%	±0.2%	±0.1%	455KW	6.0kg/h
LB2000	160t/h	2000kg	±0.3%	±0.2%	±0.1%	510KW	6.0kg/h
LB2500	200t/h	2500kg	±0.3%	±0.2%	±0.1%	575KW	6.0kg/h
LB3000	240t/h	3000kg	±0.3%	±0.2%	±0.1%	735KW	6.0kg/h
LB4000	320t/h	4000kg	±0.3%	±0.2%	±0.1%	890KW	6.0kg/h
LB5000	400t/h	5000kg	±0.3%	±0.2%	±0.1%	998KW	6.0kg/h
Model	Productivity	Mixer capacity	Weigh accuracy			Power rating	Fuel consumption
			Aggregates	Fillers	Asphalts
GLB2000	160t/h	2000kg	±0.3%	±0.2%	±0.1%	465KW	6.0kg/h
GLB3000	240t/h	3000kg	±0.3%	±0.2%	±0.1%	630KW	6.0kg/h
GLB4000	320t/h	4000kg	±0.3%	±0.2%	±0.1%	790KW	6.0kg/h
Model	Productivity	Mixer capacity	Weigh accuracy			Power rating	Fuel consumption
			Aggregates	Fillers	Asphalts
PLB2000	160t/h	2000kg	±0.3%	±0.2%	±0.1%	470.5KW	6.0kg/h
PLB3000	240t/h	3000kg	±0.3%	±0.2%	±0.1%	635.5KW	6.0kg/h

Company Introduction:
Wuxi Taite Road Construction Machinery Co., Ltd. is located in the scenic Taihu Lake, Mountain feet, a stone's throw away from the Sunan International Airport, and south Beijing-Hangzhou Grand Canal, west of State Road 312 and the Beijing-Shanghai intercity high-speed railway, adjacent to the Taihu Lake high-speed, traffic is very convenient, excellent location of the ground; company is located in Yangtze River Delta, Wuxi New District Shuofang Industrial Park, the region's economic activity, information fast, accessible at home and abroad with technical support and product support capabilities to build road maintenance machinery and equipment as the representative of the product, has focused on the development of the contemporary trend of industrial modernization. Building company is the earliest professional manufacturer of road maintenance equipment.
Certifications:
Shipping photos:
