400liter High Shear Emulsifying Mixing Tank Vacuum Heating Tank
| US$300.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
mixing tank
Application Area
Daily Chemical
Certification
CE
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Forced
Working
Shear Mixer
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Cycle Operating
Trademark
Ranking
Origin
China
HS Code
847982
Product Description

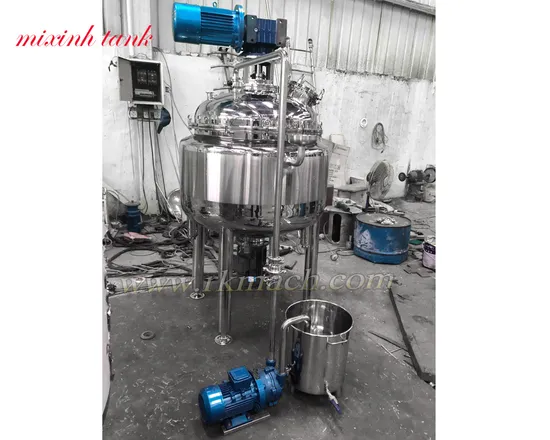

400 Liter emulsifying tank vacuum emulsion mixing tank300Liter tank / high shear vacuum heating tank comes with a high shear mixer / homogenizer, a stainless steel vessel with build-in oil heating system, temp. controller, vacuum pump as well as the related pipe and fittings between the vessel and the vacuum pump.
option function
1. 0~3000rpm variable speed emulsifying mixing, bottom mounting
2. top mount high shear mixer / homogenizer 1.5kw to 11kw
3. scraper mixing 36rpm / 0~36rpm, 60rpm,
4. variable speed controller
5. steam jacket, electric jacket
6. temperature controller
....
custom case:
| Items | G-FL 300 | |
| Power supply | 380V 50Hz 3phase | |
| Tank body | Full capacity | 370 Liter |
| Working capacity | 300 Liter | |
| Inner diameter mm | Φ800 | |
| Round part height mm | 500 | |
| Insulation | 2 inch PU | |
| Material & Thickness | Inner wall | SS316L 4mm |
| Heating jacket | SS304 3mm | |
| Outer wall | SS304 1.5mm | |
| Heating system | Heating medium inlet pipe Size | 1" |
| Heating type | Electric heating | |
| Heating power | 5kw×4Nos | |
| Temperature control | Automatic temp. control Digital temp. display | |
| Homogenizer | Motor power | 4kw |
| Agitator speed | 2980rpm | |
| Type | Claw type rotor & slotted stator | |
| Contact material | SS316L | |
| Vacuum system | Max vacuum | -0.86Mpa |
| Motor power | 1.1kw | |
| Accessories | Vacuum pipeline, one-way valve Vacuum type pressure valve Vacuum break valve | |
| Occupied area | L×W×H | 1500×1000×1700mm |
| Unit price | Please contact our online team to get the latest price | |
