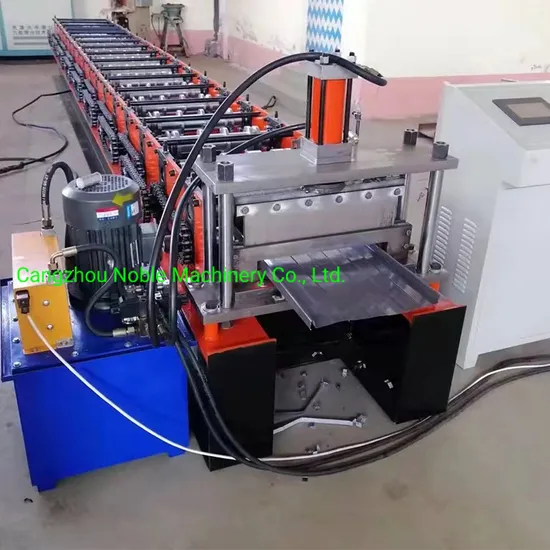

Self Lock Metal Roofing Clip Panel Roll Forming Machine

Product Description

Seamless Self Lock Roll Forming Machine
Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
1. Component line1000 Roof Panel Cold Roll Forming Machine

No.	Name	Unit	Qty
1	Man-made uncoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	mold pressing machine	set	1
6	Blade	set	1
7	Receiving table	set	1

Product parameter

Series	Details	Parameter
ProducT	Raw material	PPGI /PPGL
	Material thickness	0.25-0.8mm
	Product cutting length	Adjustable
	Coil ID	508 mm
	Coil width	1250 mm
	Coil weight	5T
Decoiler	Work type	hand type
	Structure	Steel channel for basic frame
	Loading capacity	5 Tons
	Coil inner diameter	550-610 mm(adjustable)
	Max coil width	1250 mm
Roll forming machine	Feeding device	Platform, the width is adjustable
	Roller stations	16 stages The distance between 2 stages is 443mm
	Roller shaft	Shaft material: 45# steel
		Shaft diameter: φ70 mm
	Roller	Roller material: 45# steel
			Roller spacer	Anti rusty treatment
	Work speed	15m/min
	Main structure	Middle plate weld with structure
	Motor power	5.5KW ,SHANGHAI LICHAO BRAND
	Transmission	1.0INCH CHAINS
	Machine basic frame	350# H steel welded with diagonal bracing inside
	Bearing	Chinese famous brand: Harbin
	PLC control system	Frequency brand	Delta (original)
PLC brand PLC		Delta (original)
Screen type		Touch screen also have button
Screen language		English / Chinese/Arabic
Low voltage apparatus		TAIWAN DELTA
Encoder		Omron
Function		Cutting to length, quantity and work speed control.
Hydraulic system	Work type	Hydraulic cutting
	Driving type	By pillar type cylinder
	Hydraulic motor power	4.0KW
	Cutter material	Cr12
	Cutting length tolerance	±1-3mm
Product collect table	Length	3m
	Width	1.3m
	Structure	Shaped steel welded
Machine weight	Around 4Tons

Detailed photo
Decoiler ( Selectable configuration ):
Left ( Standard configuration ): Manual simple decoiler;
Right (Optional configuration ): Hydraulic decoiler; Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm
Forming station :
Cutting system
Collect Product Table 1. Automatic Stacker (optional configuration)--Length: According to customized;
2. Manual Simple collecting product table (standard configuration)--Length: 3m(common) or as customized.
Product feature
1 More efficient and accurate execution of production orders; 2. High equipment reliability; 3. Little waste of materials and energy; 4. High productivity; 5. High quality materials, get a longer service life; 6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll; 7. Customized coil processing solutions to solve all aspects of technical problems.
1 More efficient and accurate execution of production orders; 2. High equipment reliability; 3. Little waste of materials and energy; 4. High productivity; 5. High quality materials, get a longer service life; 6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll; 7. Customized coil processing solutions to solve all aspects of technical Packaging & Shipping
Company Profile

Cangzhou Noble as a professional manufacturer of ROLL FORMING MACHINE, we use AUTO CAD design software. With more than 16 years of experience and strict quality control, our products meet international standard. We are the leading manufacturer of ROLL FORMING MACHINE in CHINA.
Our company Sell machinery from 2011 years, manufacture all kind of machinery: Roof Tile machinery, wall panel machinery, roofing corrugated sheet machinery, floor deck machine, C&Z Purline machine, highway guardrail machine, EPS/Rock wool Sandwich panel line, Container board machine, Roll shutter door machine, Down spout machine and Steel bar straightening machine, PPGI/GI/GL Coils, Prefabricated container house Etc. All our clients are satisfied with the workmanship and performance of our machines because our company is accompanied with sound infrastructure and qualified team, Our company prime mission is to provide superior quality industrial machines that are efficient, highly productive and durable.
All our efforts are resulted in to the growth at par excellence and also company started getting recognized as an organization compassionately devoted to the policy of "Quality" with "VALUE FOR MONEY".

Exhibition & Client Visit
FAQ
.How to play order :
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit ---we start producing
What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
Guarantee
Lifetime maintenance guarantee.We offer 2 years guarantee
*After-sales
To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.
