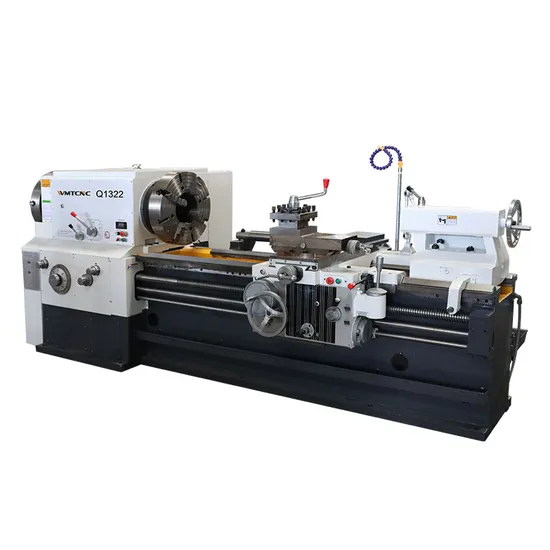

Q1322 (225mm spindle bore) pipe threading lathe machine with CE

Product Description

Product Description

Features: Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads.
Application:
This lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.

Model		UNIT	Q1322
Capacity	Swing over bed	mm	630/800
	Swing over cross slide	mm	340/540
	Distance between centers	mm	1500/3000
	Pipe threading range	mm	Ø50-220
	Width of bed way	mm	550
	Max.load capacity	T	3
Spindle	Spindle bore	mm	Ø225
	Spindle speed steps	-	FWD. 12/REV. 6
	Spindle speed range	rpm	24-300/38-384
	Chuck size	mm	520
	Chuck type	-	4-jaw manual
Turret	Turret type	-	Manual 4 position
	Tool shank size	mm	32x32
	Turret travel	mm	200
Carriage	X axis feed grade/range	mm/r	22/0.02-0.45
	Z axis feed grade/range	mm/r	26/0.07-1.33
	X axis rapid traverse speed	mm/min	2300
	Z axis rapid traverse speed	mm/min	4000
	X axis travel	mm	320
	Z axis travel	mm	1310/2810
Tailstock	Tailstock quill diameter	mm	100
	Tailstock quill taper	-	MT#5
	Tailstock quill travel	mm	250
Motors	Main spindle motor	kW	7.5
	Rapid traverse motor	kW	0.3
	Coolant pump motor	kW	0.125
Thread	Metric thread grade/range	mm	24/1-14
	Inch thread grade/range	T.P.I.	40/2-28
Dimensions	Width x Height	mm	1360X1555
	Length	mm	3657/5157
Weight	N.W./G.W.	T	4.3/5.15
