High Capacity Baby Pull up Pants Machine for Large Scale Production

Product Description

NEW YUHONG
Full Servo Baby Pull Up Pants Machine Product Description

CSG-BPUP700 FULL SERVO BABY PULL UP PANTS MACHINE
Product Stucture
1	3-pcs type baby pull up pants
2	2-pcs type baby pull up pants
3	2pcs and 3-pcs type baby pull up pants compatible
Main Technical Parameters
1	Supply,3 phase,380V,50Hz
2	Power:500KW(Excluding hot melt applicator and Compressor)
3	Production speed:450/600/700pcs/min
4	Qualification:≥97%
5	Outside dimension(m):46 x 10x 5.5 (L×W×H)( for reference)
Main Function and Features
(I)Mechanical part
1	Pulp SAP mixing product and laminating core product are compatible
2	High-density ultra-thin fluff core forming drum system,good absorbability,and low reverse osmosis
3	Waist Sealing:Ultrasonic sealing process, support for tension customization,soft feel,and good appearance
4	Waist elastic lamination is made of glue-free technology with ultrasonic, which improves the softness of the waist and saves costs
5	3D material online making application (option)
6	With web guiding system
7	Packing machine or stacker (option)
8	Dust collection filter system (option)
(II)Electric part
1	Full servo motor drive and PLC control
2	One button for size change, quick and less waste
3	High-precision tension control system,active un-winding and auto-splicing system
4	i-MAS Intelligent equipment mangement and analysis system
5	Material auto-splicing joint limit at 3m, and decrease material wastage
6	Material auto-splicing inspect,broken and lost alarm system
7	Material picture online positioning application
8	Vision inspection system (option)
9	Elastic BTSR tension control system, single tension adjust(option)

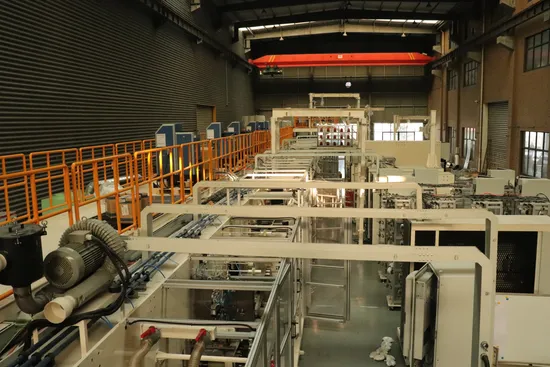

Detailed Photos
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO., LTD.
With an impressive legacy spanning nearly 30 years, ZHEJIANG NEW YUHONG excels in crafting top-tier disposable hygiene machinery. Our extensive portfolio includes state-of-the-art sanitary napkin machines, under pad machines, as well as adult and baby diaper machines. Annually, we roll out more than 30 sophisticated production lines, delivering thousands of cutting-edge machines worldwide. We have proudly established a stellar reputation, especially in China, Southeast Asia, the Middle East, and Europe, where our innovations are highly esteemed.
FAQ
