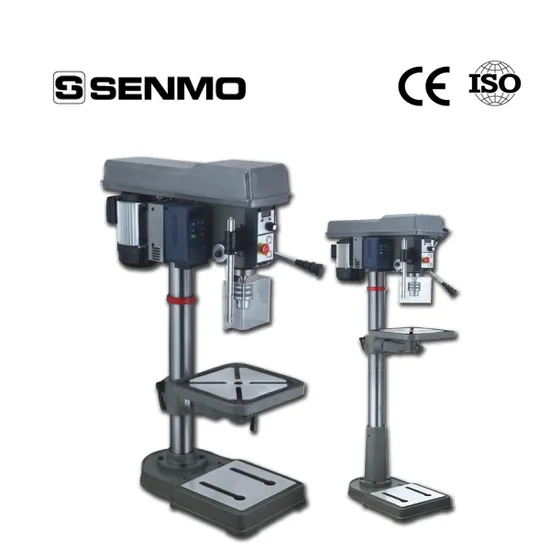

Senmo High Precision Universal Belt-Driven Drilling Machine Dp43016b-Vs
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
DP43016B-VS
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Drill Capacity
25mm
Chuck Capacity
16mm
Swing
430mm
Spindle Taper
Mt2
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Feature |
| 16mm (5/8'') max. chuck capacity. 430mm swing. 2 spindle speeds. Optional chuck guard and micro switch for CE requirement. |
| Model | DP43016B-VS |
| Drill capacity | 25mm |
| Chuck capacity | 16mm |
| Swing | 430mm |
| Distance from spindle to column | 215mm |
| Spindle taper | MT2 |
| Speed (50Hz) | 2 (0-700/0-3000rpm) |
| Spindle travel | 80mm |
| Column diameter | 80mm |
| Max. distance from spindle to table | 440mm |
| Max. distance from spindle to base | 640mm |
| Base size | 545x330mm |
| Table size | 315x315mm |
| Table tilt | Yes -45/+45° |
| CE chuck guard | Yes |
| LED light | Yes |
| Laser light | Yes |
| Converter (vector control) | Yes |
| Motor (w)/S1 | 1100W |
| Height | 1065mm |
| N.W./G.W. | 81/84kg |
| Packing size | 970x540x390mm |
| Quantity for 20GP | 144pcs |
| Standard Accessories | Optional Accessories |
| Drill chuck | Copper motor |
| Wrench set | Chuck guard |
| Aluminium motor | Emergency stop |
| Keyless drill chuck | |
| Vice |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
