High Quality TM215.8 21ton 1.0cbm Crawler Hydraulic Excavator, Digger, Excavator for Sale

Product Description

Introduction of excavator, crawl excavator operating weight from 5.85ton to 76 ton, bucket capacity from 0.2 m3 to 4.0 m3
Crawl excavator Main Features:
Crawl excavator Main valve:
Inline valve with boom and Arm anti-drop function, boom and arm cylinders with regeneration function to enhance the speed and save the energy
Crawl Excavator Main pump:
Japanese Inline hydraulic pump is more reliable and durable
Crawl Excavator Hydraulic motors:
Inline swing motor and Eddie travel motor, compact structure integrates reducer, buffer valve and anti-reverse valve
More Durable Boom and Arm, undercarriage, easy maintenance
Full sealed, ROPS/FOPS cabin with A/C, luxury seat, colorful LCD monitor, damper can reduce vibration and noise
Excavator specifications

MODEL	TM215.8
Operating weight (T)	21.5
Bucket capacity (m3)	1.0
Engine model	Misubishi 4M50
Rated power (kw/r/min)	118/2000
Volume of fuel tank (L)	420
Travel speed (km/h)	5.2/3.5
Swing speed(r/min)	11.5
Max climbing degree°	70
Bucket digging force at power max (KN) ISO	157
Average grounding pressure(KPA)	48
Hydraulic pump model	InLine V90N130
Maximum flow (L/min)	222*2
Setting pressure (MPa)	37.3
Volume of hydraulic tank (L)	246
Overall length (mm)	9560
Overall width (mm)	2980
Overall height (to top of boom)(mm)	3040
Overall height (to top of cab)(mm)	3120
Counterweight ground clearance (mm)	1065
Min. ground clearance (mm)	466
Tail swing radius (mm)	2720
Track grounding length (mm)	3260
Track length (mm)	4060
Track gauge(mm)	2380
Track width (mm)	2980
Track shoe width (mm)	600
Turntable width (mm)	2700
Max. digging height (mm)	9275
Max. dumping height (mm)	6560
Max. digging depth (mm)	6515
Max. vertical wall digging depth (mm)	5915
Max. digging depth for 2.5m horizontal plane (mm)	6380
Max. digging reach (mm)	9865
Max.digging reach at ground level (mm)	9680
Min. swing radius (mm)	3630
Max. height at min swing radius (mm)	7670
Distance from swing center to rear (mm)	2720
Height of counterweight (mm)	2120
Grounding length (in transportation) (mm)	4850
Arm length (mm)	2900
Boom length (mm)	5700

Excavator workshop:

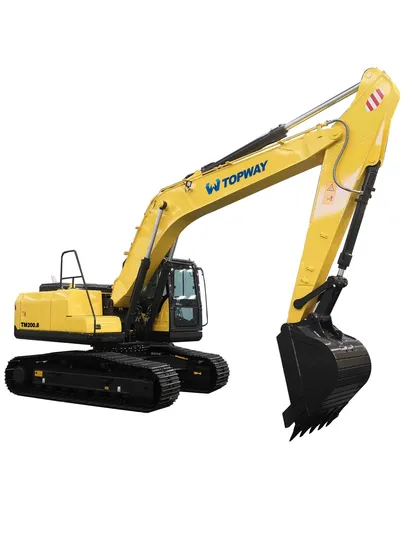

Excavator photo
Excavator in 40FR, RORO VESSEL and BULK VESSEL
