High Density PE Pipe with Full Range Od20-1200mm HDPE Pipe for Water Supply

Product Description

Company Profile Our company's main products are: HDPE,PVC,PP-R,PEX and other series, widely used in construction
engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement,
power cable sheathing and other fields. There are nearly 3,000 kinds of pipes and fittings and valve products of
different varieties and specifications.
Product Description Our products meets GB/T13663-2000,ISO4427. HDPE water supply pipe use PE100 as raw materials,
processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics,
pipe and fittings can be employed melt socket connection and butt fusion connection,to insure the
pipe system safety and reliability as well as low construction cost.
specifications:

Nominal pressure	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa
Standard dimension ratio	SDR26	SDR21	SDR17	SDR13.6	SDR11
Nominal outside diameter	Wall thickness	Wall thickness	Wall thickness	Wall thickness	Wall thickness
(mm)
16					2
20				2	2.3
25				2.3	3
32				2.4	3
40			2.3	3	3.7
50		2.3	2.9	3.7	4.6
63	2.3	2.5	3.7	4.7	5.8
75	2.9	3.6	4.5	5.6	6.8
90	3.5	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10
125	4.8	6	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2	64.5
800	30.6	38.1	47.4	58.8	72.7
900	34.4	42.9	53.3	66.2
1000	38.2	47.7	59.3	73.6
1200	46.2	57.2	70.6

*We can customize the products according to your requirements.

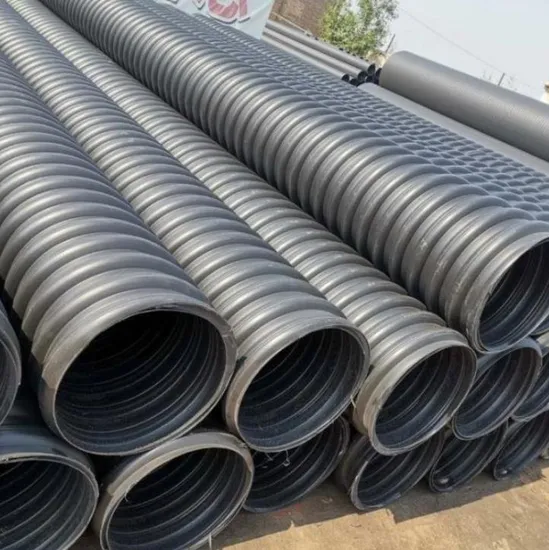

HDPE double wall corrugated pipe is a new type of light weight pipe with high density polyethylene as the main raw material,
extruded from both inside and outside. It is one-time molding pipe, has many outstanding characteristics such as light weight,
sound insulation,shock absorption, high pressure resistance, good toughness, fast construction, long time service time.
Because of convenient and reliable connection, it is widely used at home and aboard.
specifications:

Diameter	Minimum mean	Suggestion connection length(mm)	Minimum laminated wall thickness(mm)	Minimum inner wall thickness(mm)
DN/ID	internal meridian
(mm)	Dim MIn(mm)
200	198	54	1.5	1.1
300	296	65	2	1.7
400	394	74	2.5	2.3
500	492	85	3	3
600	588	96	3.5	3.5
800	785	118	4.5	4.5
1000	985	140	5	5
1200	1185	162	5	5
