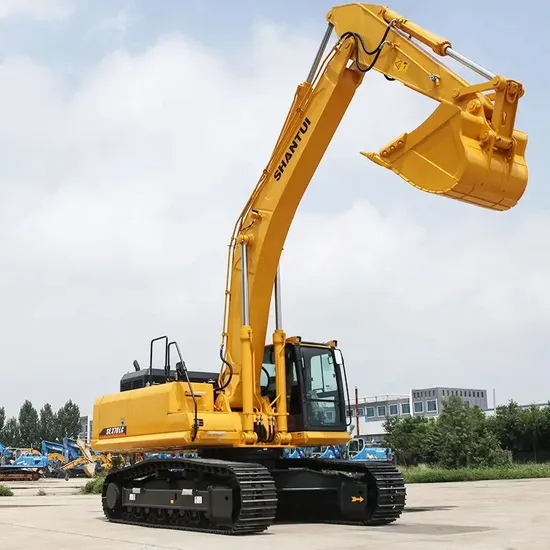

Chinese Earthmoving Machinery Big Size Shantui Se370LC 36.8ton Excavator with Yanmar Engine Excavators

Product Description

Product Description
The SHANTUI SE370LC features standard integrated SHANTUI technology to make you more efficient. With new cab options focused on operator comfort and less fuel and maintenance, the excavator ensures you'll spend more time producing profits for your business.
Move more with less fuel
To fulfill the tough job of mining environment, the SHANTUI SE370LC is equipped with a super strong "heart"-Cummins QSL9. Four working modes can switch freely and contributes to perfect balance of efficiency and energy saving.

Purpose built for mining
The design of SE370LC is completely optimized and the major stress locations are reinforced to resist against severe working conditions. Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.
Work in comfort
The full size ROPS and OPG certified cab is quiet and comfortable. Fully adjustable suspension seat can maximize comfort levels and reduces operator fatigue.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.

Reduced maintenance costs
Convenient maintenance means less cost , and SE370LC's most routine service points are at ground level. The electric parts are centrally arranged to ease the checking and maintenances. The filling of coolant, the replacement of air filter element, and the power master switch are easily accessible. The parallel radiator effectively avoids the overheating and eases the cleaning.
Multi-purpose SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers.
SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
Technical Specifications

Engine	Model	Cummins QSL9
	Type	High pressure and common rail, air air intercooled, turbocharging
	Quantity of cylinders	6
	Bore x stroke	114x 145 mm
	Displacement	8.9 L
	Power output	214 kW
Hydraulic System	Pump	lmported
	Type	Double piston pump plus gear pump
	Maximum discharge flow	2 x 300+27 L/min
Travel System	Travel motor	Variable axial piston motor
	Travel brakes	Lubricated double-disc
	Parking brake	Pressure release
	Travel shoes	2 x49
	Travel speed	3.0/4.9 km/h
	Drawbar pulling force	315 kN
	Gradeability	70% (35°)
	Minimum ground clearance	565 mm
Oil Capacity	Fuel tank	550 L
	Cooling system	35 L
	Engine oil	24 L
	Hydraulic oil tank	366 L
Swing System	Brake	Pressure Release Mechanical Braking
	Swing speed	10.5 rpm
	Tail swing radius	3520 mm .
	Arm digging force	174 KN
	Bucket digging force	254 KN
Bucket	Bucket capacity	1.8 m3
	Number of bucket teeth	5
	Bucket width	1730 mm
	Arm length	3.186 m
	Maximum digging reach/ Maximum digging reach at ground level	11.12 m/10.915 m .
	Maximum digging depth/height	7.34 m/10.05 m
	Maximum dumping height	7.09 m .
	Minimum swing radius	4.335 m

Working Conditions
Packaging & Shipping
Company Profile
FAQ
1. Why should you buy from us not from other suppliers?We are a manufacturer and distributor of construction machinery with many years of experience in Asia, the Middle East, South America and Australia. We provide competitive price, service and transportation guarantee for all construction machinery.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment.3.What can you buy from us?Road Roller, Motor Grader, Excavator, Wheel/Crawler Loader, Bulldozer, Truck Crane, Dump Truck, Forklift.4. What services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Western Union;Language Spoken:English,Chinese,French,Hindi.
