Honeycomb Die Cutting machine
| US$8,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CY-40-1200/1200
Type
Industrial Cutter
Blade Material
HSS
Computerized
Non-Computerized
Process
Paper Machine
Usage
Packing Paper Machine
Automatic Grade
Automatic
Certification
Ce
Transport Package
Wood Package
Specification
CE
Trademark
SHENXI
Origin
China
HS Code
8441
Production Capacity
10 PCS/Year
Product Description

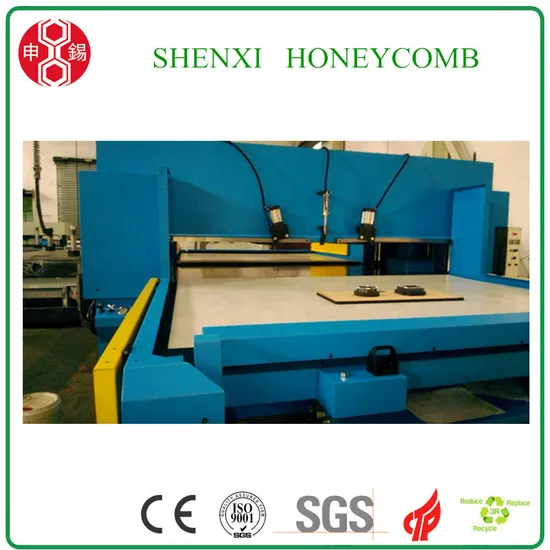

Honeycomb Paperboard Die Cutting Machine
Introduction: Honeycomb Paperboard Die-cutting machine, used to punch different shape of full holes/ half holes on honeycomb paperboard. Features: Cut any shape of holes on honeycomb board, thickness from 10-60mm
Punch complete holes or half holes on honeycomb paperboard
Hydraulic pressing, 40-100 tons of cutting pressure according to cutting area and thickness
We can make it automatically working in honeycomb board feeding, cutting, lifting and output .
| No. | Model | CY-40-1200/1200 |
| 1 | Effective size of cutting(mm) | 1200MMX1200MM |
| 2 | Max. die-cutting height of honeycomb board | 60mm |
| 3 | Qty of hole cutting in one time | 1-25 holes |
| 4 | Drive system for die-cutting | 40tons, hydraulic |
| 5 | Lifting height | 100-300 mm |
| 6 | Qty of Guide Pillars | 4 |
| 7 | cylinder | diameter110X200mm, 2sets |
| 8 | Die- Cutting depth | 1-60mm( adjustable) |
| 9 | Weight (tons) | 2.8 tons |
| 10 | Power (oil pump) | 2.2kw |
| 11 | Dimensions | 2000x1600x1600mm |
| No. | Model | CY-60-1200/1600 |
| 1 | Effective size of cutting(mm) | 1200MMX1600MM |
| 2 | Max. die-cutting height of honeycomb board | 60mm |
| 3 | Qty of hole cutting in one time | 1-25 holes |
| 4 | Drive system for die-cutting | 60tons, hydraulic |
| 5 | Lifting height | 100-300 mm |
| 6 | Qty of Guide Pillars | 4 |
| 7 | cylinder | diameter 110X200mm, 2sets |
| 8 | Die- Cutting depth | 1-60mm( adjustable) |
| 9 | Weight (tons) | 4 tons |
| 10 | Power of oil pump | 5.5kw |
| 11 | Dimensions | 2000x1600x1600mm |
| No. | Model | CY-60-1600/1600 |
| 1 | Effective size of cutting(mm) | 1600MMX1600MM |
| 2 | Max. die-cutting height of honeycomb board | 60mm |
| 3 | Qty of hole cutting in one time | 1-40 holes |
| 4 | Drive system for die-cutting | 60 tons, hydraulic |
| 5 | Lifting height | 100-300 mm |
| 6 | Qty of Guide Pillars | 4 |
| 7 | cylinder | diameter 110X200mm, 2sets |
| 8 | Die- Cutting depth | 1-60mm( adjustable) |
| 9 | Weight (tons) | 4 tons |
| 10 | Power of oil pump | 5.5kw |
| 11 | Dimensions | 2200x1800x1600mm |
80T: 7.5
100T:11KW
FOB SHANGHAI:
CY-40-1200/1200: USD 10000
CY-60-1200/1600: USD 12000
CY-60-1600/1600: USD 14000
