Product Description

Factory price automatic screw making machine Our factory has been specialized in producing all kinds of screw, bolt and nut making machines for nearly 30 years. You can send us the sizes and pictures of products that you are going to make and then we will recommend you the suitable machines.
Also we can customize machines according to your requirements.

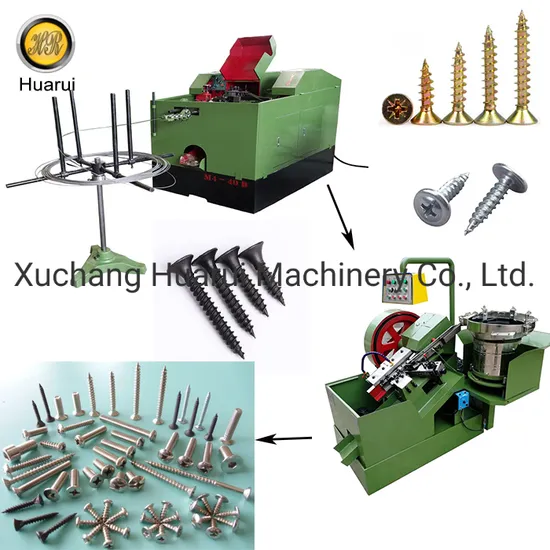

1. Cold heading machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Technical data

Model	Max. Screw Dia. (mm)	Max. Screw length (mm)	Capacity (pcs/min)	Motor (kw)	Weight (Ton)	Overall size (m)
ZM3-18A	3	18	160-180	0.75/0.37	0.6	1.3*0.75*0.9
ZM3-18B	3	18	160-180	0.75/0.37	0.6	1.3*0.75*0.9
ZM3-28A	3	28	160-180	0.75/0.37	0.6	1.3*0.75*0.9
ZM3-28B	3	28	160-180	0.75/0.37	0.6	1.3*0.75*0.9
ZM4-28B	4	28	120-160	1.5/0.37	0.97	1.5*0.9*0.9
ZM4-28D	4.5	28	180-200	1.5/0.37	1.2	1.6*1*1.2
ZM4-40B	4	40	120-150	1.5/0.37	0.97	1.6*1*1.2
ZM4-40D	4.5	40	180-200	1.5/0.37	1.2	1.6*1.1*1.1
ZM4-60D	4	60	110-160	1.5/0.37	1.5	2*1*1.2
ZM5-40B	6	40	120-150	2.2/0.37	1.8	1.8*1.1*1.1
ZM5-60B	6	60	110-140	2.2/0.37	1.8	1.8*1.1*1.1
ZM5-80B	6	80	80-100	2.2/0.37	1.9	2*1.1*1.2
ZM5-100B	6	100	60-80	3/0.18	2.1	2.4*1.2*1.2
ZM5-120B	6	120	50-70	3/0.37	2.3	2.8*1.3*1.3
ZM6-60B	8	60	80-110	4/0.37	2.8	2.3*1.3*1.3
ZM6-100B	8	100	60-90	4/0.37	2.7	2.3*1.3*1.3
ZM6-120B	8	120	60-70	4/0.37	3	2.4*1.3*1.4
ZM6-170B	8	170	40-70	4/0.37	3.7	3*1.3*1.5
ZM6-200B	8	200	40-55	4/0.37	3.7	3*1.3*1.5
ZM6-320C	8	320	25-30	7.5/0.37	4.5	5.2*1.8*2.1
ZM8-90B	10	90	70-90	5.5/0.37	4.2	3.4*1.5*1.5
ZM8-90C	10	90	70-90	5.5/0.37	4.2	3.4*1.5*1.5
ZM8-130B	10	130	50-90	5.5/0.37	4.6	3.4*1.5*1.5
ZM8-130C	10	130	50-90	5.5/0.37	4.6	3.4*1.5*1.5
ZM8-150C	10	150	40-50	5.5/0.37	5	3.5*1.7*1.7
ZM8-200B	10	200	25-60	7.5/0.37	6	3.8*1.6*1.7
ZM10-120B	12	120	40-70	11/0.75	7	3.3*1.71.7
ZM10-170C	12	170	40-60	11/0.75	7.5	4.2*1.81.7
ZM10-220C	12	220	35-60	11/0.75	7.5	4.2*1.81.7
ZM10-250C	12	250	30-45	11/0.75	8.5	5*1.8*1.7
ZM10-300C	12	300	25-35	15/0.75	9	5*1.9*2.1
ZM10-360C	12	360	20-30	15/0.75	12	6.7*2*2.6
ZM12-150C	14	150	40-50	15/0.75	10	3.9*1.9*1.8
ZM12-250C	14	250	35-50	15/0.75	11	5.3*2.2*1.9
ZM14-150C	16	150	40-50	11/0.75	10	4.5*2.2*2.15
ZM14-250C	16	250	35-45	15/0.75	11	5*2.2*2.15
ZM16-160C	18	160	45	18.5	15	4.2*2.6*1.8

2. Thread rolling machine
This equipment adopts two thread profile thread rolling plate staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Technical data

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Motor (kw)	Capacity (pcs/min)	Weight (Ton)	Overall size (m)
HR3-20A	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
HR3-20B	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
HR4-25A	M4	25	1.5	320	0.45	1.3*0.63*1.32
HR4-25B	M4	25	1.5	320	0.45	1.3*0.63*1.32
HR4-40A	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
HR4-40B	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
HR5-55A	M5	55	3+0.37	170	1.2	1.6*1.35*1.7
HR5-55B	M5	55	3+0.37	170	1.2	1.6*1.35*1.7
HR5-65A	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
HR5-65B	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
HR6-60A	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
HR6-60B	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
HR6-100B	M6	100	5.5+0.37	110	1.9	2.7*1.3*1.3
HR8-80B	M8	80	5.5/0.37	110	1.8	2.1*1.55*1.3
HR8-100B	M8	100	7.5+0.37	100	2.1	2.7*1.7*1.3
HR8-120B	M8	120	5.5	100	2.1	2.4*1.8*1.4
HR10-120B	M10	120	7.5	80	1.8	2.35*1.95*1.4
HR12-120B	M12	120	11	60	3	2.45*2*1.45
HR12-160B	M12	160	13	60	3	2.45*2*1.45
HR12-220B	M12	220	15	50	3.5	2.5*2*1.45
HR16-120B	M16	120	15	50	3.8	2.5*2.1*1.45
HR16-160B	M16	160	15	50	4	2.5*2.1*1.45
HR16-220B	M16	220	15	45	4.8	3.7*1.9*1.7

Finished screws
Some loading photos
Photos taken with customers
After sale service
1-We will send you manual, detailed operation videos which will teach you how to operate the machines step by step.
2-Our engineer is available to your country to help install the machines and train your workers .
3-We provide online support all the time.
If you are interested in our products, feel free to contact us
