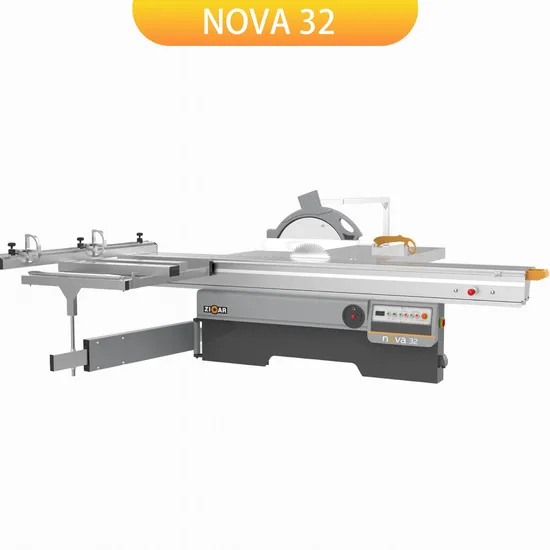

ZICAR 45 90 degree woodworking cabinet panel saw sliding table saw machine with CE certification
Basic Info.
Model NO.
NOVA 32
Power Type
Electric
Layout
Vertical
Controlling Mode
Electrical
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
1 year
Length of cut
3100mm
Scoring blade diameter
120mm
Saw spindle diameter
30mm
Sliding table size
3200x375mm
Saw blade diameter
300/400mm
Scoring saw blade speed
7000rpm
Scoring spindle diameter
20mm
Model
Nova 32
Height of cut
80mm(100mm optional)
Main saw spindle speed
4000/5000rpm
After-sales Service Provided
Online support
Power
5.5kw
Scoring saw motor
0.75kw
Main saw blade tilting angle
45-90°
Weight
850kg
Transport Package
Plywood Package
Specification
3200x3150x900mm
Trademark
ZICAR
Origin
China
Production Capacity
60sets/Month
Packaging & Delivery
Package Size
320.00cm * 320.00cm * 100.00cm
Package Gross Weight
850.000kg
Product Description
Product DescriptionProduct Parameters
ZICAR sliding table saw advantages:
1.High precision machining equipment can ensure the high quality and fast&stable delivery time.
2.Using our own laser machine to cutting machine body,so the machine is more beautiful and with high precision.
3.The saw shaft are all precision-machined by CNC lathes and CNC grinders. The error is almost 0.
4.All the working area and specifications can be customized according to your requests.
| Model | Nova 32 |
| Length of cut | 3100mm |
| Width of cut | 1250mm |
| Height of cut | 80mm (45°Max 55mm) |
| Saw blade diameter | 300/400mm |
| Scoring blade diameter | 120mm |
| Main saw blade speed | 4000/6000rpm |
| Scoring saw blade speed | 7000rpm |
| Main motor | 4.0kw or 5.5kw |
| Vice-motor | 0.75kw |
| Main saw blade titling angle | 45-90° |
About us
Our Advantages
Exhibition
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.
