China Food Industrial Mixing Equipment Small Scale Tomato Processing Machine

Product Description

Product Description
Vacuum homogenizer vacuum mixer homogenizer
Definition of vacuum homogenizer emulsifier
It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly.
The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect.
By the operation of hydraulic shearing, centrifugal extruding. impacting, breaking, and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly .
After reciprocation circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
Usage and application field
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp&paper, pesticide, fertilizer, plastic&rubber, electric and electronics, fine chemical industry, etc.

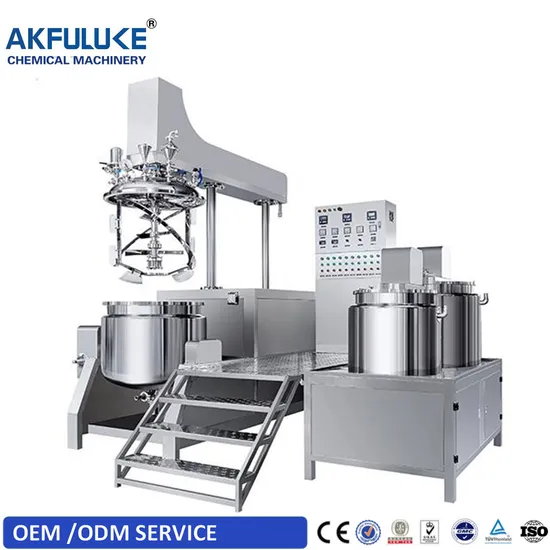

The emulsifying effect is more prominent for materials of high base viscosity and high solid content.Hydraulic Lift Vacuum Emulsifying Machine
Main Component:
The Vacuum emulsifying mixer is mainly consist of emulsifying pot, water phase pot, oil phase pot, vacuum system, hydrailic system(optional), electric control system ( push-button control / PLC control ), operation platform, etc
Characteristic:
Homogenizer structure made through German Technology. Adopt the import double-end mechanical seal effect.
The maximum emulsifying rotate speed can reach 4,200 rpm, the highest shearing fineness can reach 0.2-5 μ m.
The vacuum defoaming system can make the material meet thr requirement of being aseptic. This machine adopt the vacuum material sucking, especially for the powder material, it is good to avoid powder material blow-away and dust entrance.
Equipped with heating and cooling function, heating method including steam heating and electric heating, it can be optional.
To ensure a more stable control of the whole machine, the electric appliances adopt imported famous brand configaration component. It is fully meet the international standards.
Performances and features Applicable Industry
Product Parameters

Model	Effective capacity	Homogenizer motor		Stirring motor		Vacuum pump		heating method & power
		kW	r/min	kW	r/min	kW	Limit vacuum	Steam	electric
FMB-200	200	5.5	0-3300	1.5	0-65	2.2	-0.09	28	10
FMB-300	300	5.5	0-3300	2.2	0-65	2.2	-0.085	32	12
FMB-500	500	7.5	0-3300	4	0-60	4	-0.085	50	16
FMB-800	800	11	0-3300	5.5	0-60	4	-0.08	65	25
FMH-500	500	7.5	0-3300	4	0-65	4	-0.085	45	16
FMH-800	800	11	0-3300	5.5	0-60	4	-0.08	54	25
FMH-1000	1000	11	0-3300	5.5	0-60	4	-0.08	54	25
FMH-2000	2000	18.5	0-3300	7.5	0-55	5.5	-0.08	63	25
FMH-3000	3000	22	0-3300	7.5	0-55	5.5	-0.08	72	25

Detailed Photos
After-sales Service1.Warranty time: one year, from the date which the product is qualified commissioning.
Any damage except the wrong operation during warranty period is repaired freely.But the travel and hotel expenses should be count on buyer.
2. Commissioning services: the product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Training services: our engineers will train your staff to operate it during the period of installation and commissioning,
and they will not leave there until your staff can operate it properly and normally.
4. Maintenance services: any malfunction happened, once you inquiry us, we will reply you within 48 hours except the special reasons.
5. Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6. Certificate services: we can provide related certificates to customers freely according to the request of customers.
7. Inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8. The file: the Manual Specification, report of the material which used to the equipment and other documents related to the GMP authentication information will be provided by us.
RFQ
Q: Are you a factory? A: Yes we are a factory with more than 28 years manufacturing experience. One is in Jjiangsu Province,
Another is in Guangzhou next to our office.
Q:I'm new in our industry,but I'm planing to set up a factory, what canI do?A: We will design the most suitable proposal based on your actual situation, such as the daily production,raw material formula, factory layout, etc. Also we would like to intro- duce some excellent suppliers of raw materials, bottles,labels, etc if needed. After sales, engineer will be send to fields installation, training and commissioning.
Q: How can you control the quality before delivery? A: First, our component/spare parts providers test their products before they offer com- ponents to us.Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we wil take a video to record the testing procedure and send the video to you.
Q:Are your machines difficult to operate? How do you teach us using the machine? A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines'functions and to teach you how to use them.If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
Q: Can I come to your factory to observe machine running? A: Yes, customers are warmly welcome to visit our factory.
Q: Can you make the machine according to buyer's request?
A: Yes,OEM is acceptable. Most of our machines are customized design based on cus- tomer's requirements or situation
