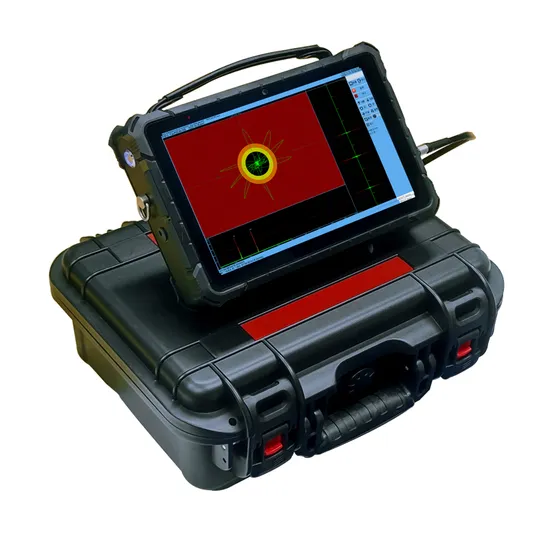

High Accuracy Multi-Function Intelligent Digital Eddy Current Detector for Metal Surface and Near Surface Flaw

Product Description

High Accuracy Multi-Function Intelligent Digital Eddy Current Detector for Metal Surface and Near Surface Flaw Product Parameters Main technical specifications and parameters

Channel	1 physical channel
Display	10.1 inch capacitive full touch color screen.
Frequency range	5Hz~12MHz, continuously adjustable
Gain range	0.0dB~99.0dB continuously adjustable, step: 0.1dB; can be fine-tuned, quickly increase/decrease;
Gain ratio	(X/Y) 0.1~10.0; continuously adjustable, fine-tuning, fast increase/decrease;
SNR	≥10dB (up to30db);
Phase rotation	0~360° continuously adjustable,
Adjustable probe drive (excitation) level	1~16 level;
Filter coefficient	0-10000
the maximum measurement value	10~10000
Hardware amplification factor	1dB~39.9dB continuously adjustable
Multiple excitation modes	DP/DI; Differential,absolute and various customized special probes can be configured.
probe abnormal alarm function	option
Digital filtering	low-pass (0Hz~2000Hz) and high-pass (0Hz~2000Hz); unique "digital filtering" is adopted to effectively suppress on-site
	interference signals and ensure the accuracy and stability of detection;
Stability	16 hours<=2dB;
Multiple display modes	impedance,time base, A\B sweep, 8-frequency sorting, analog 3D display (optional depending on model);
operating languages	Chinese and English
Working environment power supply	AC 220V/110V
Working temperature:	-10ºC~+45ºC,
Working temperature	0ºC~+45ºC
storage temperature	-20ºC~+50ºC
relative humidity	≤85%

Detailed Photos
Company Profile
Packaging & Shipping
FAQ Q: How to place order?
A: Talk to service staff, confirm machine details, after confirmed the order, we will send you PI.
Q: What is your warranty? And do you have technique support?
A: Our warranty is 1 year. We have technique support and training. We can also offer on-site serive if need.
Q: How Long is your lead time?
A: It depends on the different products. Q: How to Pay? A: We accept T/T, and Global Pay.
Q: Do you provide OEM or ODM service?
A: Yes, we have over 15 years experience for OEM and ODM serivce. Add your logo on machine is also ok for us.
Q: What's the shipment ways you can provide?
A: By Air, By sea, By Truck, By Express(door to door): DHL, UPS, FedEx, TNT, SF, EMS ect.
