High-Performance 60A Single Coil Double Coil 6VDC 9VDC 12VDC Latching Relay for Smart Meter

Product Description

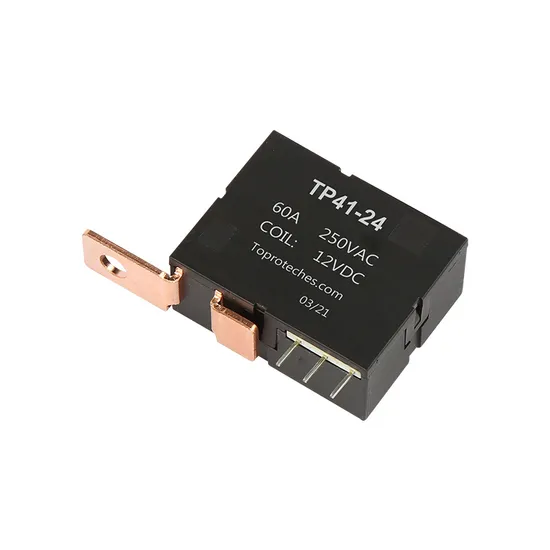

Introducing the exemplary TP41-24 Polarized Latching Relay, engineered to handle continuous switching currents of up to an impressive 60A. Crafted with precision, this relay offers flexibility with options for single or double winding coil designs, accommodating coil voltages ranging from 5VDC to 48VDC. The standout advantage of these polarized latching relays is their pulse-driven operation, which occurs within milliseconds, allowing for negligible coil heating. Designed and manufactured in strict adherence to IEC 61810-1, this relay also satisfies all requirements of IEC 62055-31, ensuring superior performance and reliability. 1. Tailored for versatility, the design can be adapted to both single and double coil configurations, with rated coil voltages spanning from 5VDC to 48VDC, catering to diverse application needs.
2. Featuring sophisticated multi-layer blades, these relays are engineered for minimal temperature rise, enhancing performance and durability.
3. Equipped with robust silver alloy contact materials, specifically AgSnO.2, these relays ensure reliable electrical endurance and longevity.
4. Compact and efficient, the outline dimensions are set at 38mm×30mm×16.5mm, making it ideal for space-constrained applications.
5. Committed to a greener future, this product complies fully with environmental protection standards, including RoHS.
6. Experience unmatched cost efficiency without compromising on quality and performance.
Coil Data

Rated Coil voltage	6VDC, 9VDC, 12VDC, 24VDC, 48VDC
Single coil power	1W (Or 1.5W)
Double coil power	2W(Or 3W)
Pulse width	50ms Max
Pulse time	<20 ms (At rated voltage)

Contact Data

Contact materials	AgSnO2
Contact arrangement	1A(B)
Contact resistance	1.0mΩ Max(Test under 1A/6VDC)
Max switching current	60A
Max switching voltage	253VAC
Max switching power	13200VA
Mechanical life	1×105 OPS
Electrical life	1×104 OPS

Standard Winding (Coil voltage can be customized)

Rated coil voltage(VDC)	Max operating voltage(VDC)	Coil resistance (1±10%)(Ω)
Single winding
6	4.8	36
9	7.2	81
12	9.6	144
24	19.2	576
48	38.4	2304
Double winding
6	4.8	18+18
9	7.2	40.5+40.5
12	9.6	72+72
24	19.2	288+288
48	38.4	1152+1152

Characteristics

Insulation resistance	1000MΩ
Dielectric strength between coil	4000V 1 minute
Dielectric strength between contact	1800V 1 minute
Creepage distance	8mm
Shock resistance	147m/S2
Vibration resistance	10-55HZ amplitude 1.5mm
Ambient temperature	-40-+85ºC
Weight	Approx.45g
Construction	Dust protection

Outline Dimensions and Circuit Diagram
