(DC-3200mm) Craft Paper Machine with High Quality

Product Description

(DC-3200mm) Craft Paper Machine with High Quality
Company introduction: we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue so welcome to visit and negotiate Perfect service: 1.technical consultation 2.Plant design 3.installation and test run 4.training engineers and workers 5.good and long time after-sale service The business process 1.send your requirements:raw material,capacity,paper grammage 2.we make the solution to you 3.come visit and negotiate 4.sign contract 5.first payment 6.production 7.pay spare money 8.delivery 9.installation ,training,test run 10.production consultlation We have a large scale of products regarding paper machinery, including: A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.) B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.) Meet customers' requirements and exceed customers' expects. We wish to found long-termcooperation with your company
3200mm Kraft Paper Making Line with Capacity 50 T/D
Technical parameter

Raw material	waste paper, waste cement packaging paper bag
Output paper	kraft paper, corrugated medium paper, kraft liner paper
Output paper weight	100 - 200gsm
Capacity	50 TD
Net paper width	3200 mm
Copper cylinder width	3700mm
Working speed	150 mmin
Planning working speed	200 m/min
Rail space:4300mm
Drive way	Alternating current frequency conversion adjustable speed ,section drive

Main equipment structure:

Cylinder section:Φ1800mm×3700mm×4300mm stainless cylinder mould 3 pcs; Φ600mm×3700mm couch roll 4 pcs, including reverse roll 1 pc; rubber Share hardness is 38ºC±2. Pulp feeding type: through square taper pipe of pressure forming device

Press section: Φ800×3700mm×4300mm natural marble roll 2 pcs,Φ750mm×3700mm×4300mm rubber roll 2 pcs, rubber hardness HSD 92ºC±2. pneumatic pressure device.

Dryer section: Φ1800mm×3700mm×4300mm alloy dryer can 8 pcs, equiped with dry felt device, blade 8 sets, half closed dryer can exhaust hood 1 set with axial-flow ventilator, induced draft fun, and radiator.

Calendar section: 2 rolls in large diameter for soft calendaring.

Winding section:Horizontal pneumatic winding machine, roll cylinder in Φ1100mm.

Rewinding section: Upper feeding Frame type rewinding machine 1 set.

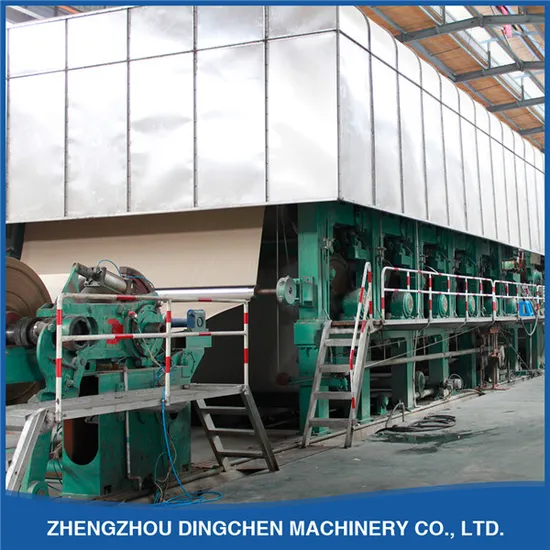

Workshop overview
