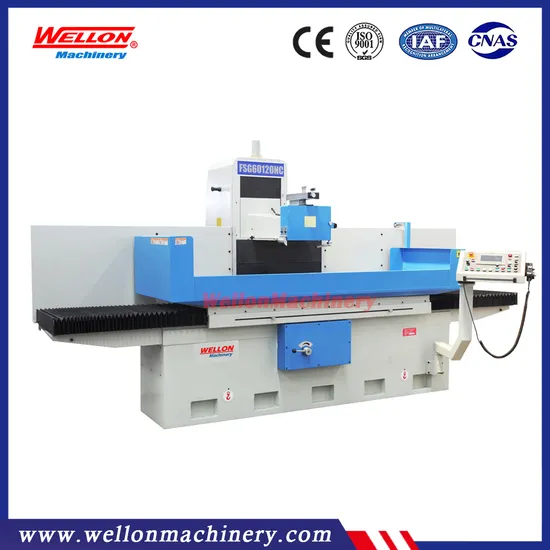

Heavy Duty Surface Grinding Machine with PLC FSG60120NC

Product Description

Product Description

Product Parameters

Performence Features:
External hydraulic unit ensures low temperature rising and supply stable power.
Auto center lubrication unit
Very easy to set auto ground program include rough, finish ,and spark-out stroke
Precision grinding spindle runs in maintance-free,support by preload high precision angular ball bearing.
Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.
The machine bed, table and column are high grade casting piece, which supply strong base of grinding, the
slideway is coat with TF wearable material and manual precision scrapped
MPG is equipped for Y&Z axis (spindle elevating and cross feed), the operating position is free,it is so easy to
control the machine.
The machine is standard equipped with SIEMENS 7" LCD-TFT colorful touchable screen.Built in program of our
engineers' genius philosophy makes the operation very simple and convenient for the operators.
Three axis Auto motion
X axis:driven by Hydraulic
Y axis:driven by AC servo motor
Z axis: driven by AC servo motor
Well designed external hydraulic unit,with high power oil pump and precision electric-magnetic valve set,stand
equipped with cooling fan .The whole system supply great smoothly power for fine ground
Technical parameter:

Model	Unit	FSG60120NC
Table size	mm	630*1250
Max.grinding size	mm	600*1250
Distance from table to spindle	mm	600
Magnetic chuck size	mm	600*1000*1
Table longitudinal move	m/min	5~25
Auto intermittent feed	mm/t	0~30
Rapid speed	mm/min	0-600
Feed of MPG	mm/div	0.005
Rapid down speed	mm/t	0.005-0.04
Rapid speed	mm/min	0-300
Feed of MPG	mm/div	0.005
Grind wheel size	mm	355*(20~50)*127
Spindle motor power	kw	7.5
Packing size	cm	434*230*250
Gross weight	kg	6500

Standard accessories:
PLC+HMI auto grind controller
Built-in magnetic chuck controller
Coolant tank
Balancing arbor
Wheel flange and extractor
Wheel dresser stand
Y/Z axis electrical wheel(MPG)
Operating manual
Splashing guard
Standard grind wheel
Leveling wedge and screw
Optional accessories:
Balancing stand
Magnetic separator
Paper filter
Oil tank guard
Electrical magnetic chuck
Parallel wheel dresser
2 Axis digital readout
Extra wheel flange
