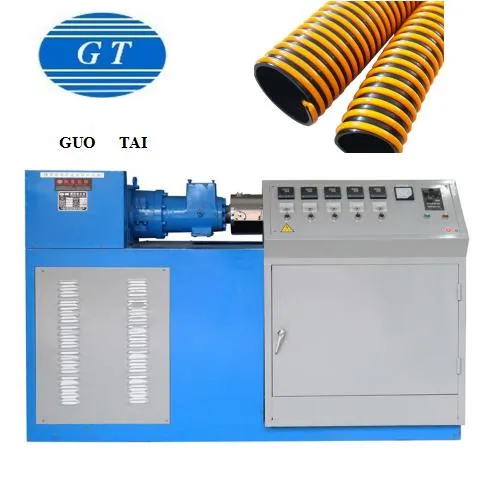

Sj-65/25hy Plastic Extruder Made in China Various Specifications Pipe Extruder/Profile Extruder
| US$6,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SJ 65/25hy
Type
Pipe Extruder
Plastic Processed
PVC
Product Type
Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Single-Screw
Engagement System
Non-Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Condition
New
Processed
Pipe Profile Ganule Sheet
material
PVC PP PE ABS
Screw Diameter
65mm
Screw Material
High Quality Alloy Steel
Inverter
Zoncn
Gearbox Type
Cast Aluminum Heater
Transport Package
Wood Bottom Case
Trademark
GT
Origin
China
HS Code
8477209000
Production Capacity
100sets/Months
Product Description
| Yuyao Guotai rubber and plastic Machinery Co. LTD Main products: plastic pipe extruder production line, plastic profile extrusion production line, wire/cable extrusion production line, plastic granulation unit and so on. Support to map to sample custom mold Welcome telephone consultation: |
Plastic bellows production line
TPR TPE rubber band production line
Profile production line
Imitation wood pencil production line
PP/PE Pipe production line
Plastic granulator production line
Plastic Extruder manufacturing plant
Application:
This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules
Specifications
Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder
Customer choice:
Mode | Screw Dia. | Length to diameter | Rotational Speed of screw | Height of center point | Capacity | Power Drive motor |
SJ-3-/25CY | 30mm | 25: 1 | 10-160r/min | 1000mm | 19.5kg/h | 2.2kw, 3kw |
SJ-45D | 45mm | 20: 1 | 10-90r/min | 1000mm | 22.5kg/h | 5.5kw |
SJ-45/25CY | 45mm | 25: 1 | 16-160r/min | 1000mm | 35kg/h | 7.5kw, 11kw |
SJ-45/28CY | 45mm | 28: 1 | 16-160r/min | 1000mm | 40kg/h | 7.5kw, 11kw |
SJ-45/25HY | 45mm | 25: 1 | 16-160r/min | 1000mm | 35kg/h | 11kw |
SJ-50/25HY | 50mm | 25: 1 | 16-160r/min | 1000mm | 40kg/h | 11kw, 15kw |
SJ-65/25HY | 65mm | 25: 1 | 8-80r/min | 1000mm | 100kg/h | 18.5kw |
SJ-65/28CY | 65mm | 25: 1 | 15-120r/min | 1000mm | 100kg/h | 18.5kw, 22kw |
SJ-65/28HY | 65mm | 28: 1 | 16-160r/min | 1000mm | 120kg/h | 22kw, 30kw |
SJ-65/30CY | 65mm | 30: 1 | 15-120r/min | 1000mm | 120kg/h | 22kw, 30kw, 37kw |
SJ-65/34CY | 65mm | 34: 1 | 15-120r/min | 1000mm | 120kg/h | 22kw, 30kw, 37kw |
SJ-70/25HY | 70mm | 25: 1 | 8-80r/min | 1000mm | 120kg/h | 22kw |
SJ-90/25HY | 90mm | 25: 1 | 10-100r/min | 1000mm | 155kg/h | 30kw, 45kw, 55kw |
SJ-120HY | 120mm | 25: 1 | 30-90r/min | 1000mm | 250kg/h | 75kw |
