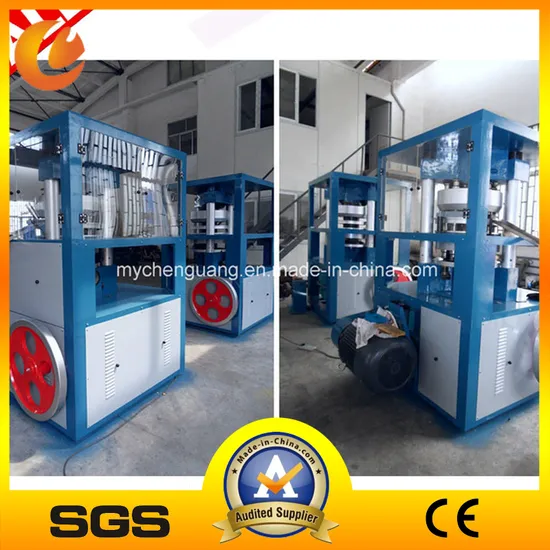

TCCA Rotary Tablet Press Machine

Product Description

100g 200g 250g Disinfectant tablet press swimming pool disinfection tablet press
We are the rotary tablet press machine manufacturer since year 1986. Rotary tablet press machines we make have arrived Mexico/Brazil/UK/USA/Poland/Holland/Japan/India/Switzerland and so on.
Introduction: ZP80-9 series rotary tablet press machines can produce 100g TCCA/Disinfectant tablets with hole or without hole.
ZP80-9 series rotary tablet press machines are developed specially for TCCA/Disinfectant tablet production by our company. ZP80-9 series has 2 models, namely ZP80-9A and ZP80-9B.
ZP80-9A large rotary tablet press is mainly used to produce100g 200g chlorine /Disinfectant tablets with an inner hole.
ZP80-9B large rotary tablet press is mainly used to produce common 100g 200g 250g chlorine/Disinfectant tablets without hole.
ZP80-9A large rotary tablet press (100g TCCA/Disinfectant tablet press) also can press any granular material into large tablets of round or non-round shape. It was specially developed for large TCCA production in 100g 200g by our company 6 years ago.
ZP80-9A large rotary tablet press machine production capacity reaches 4000 pcs/h in 100g 200g chlorine/Disinfectant tablet, which is ten times than traditional hydraulic tablet press machines. It is called "Power TCCA Machine"by TCCA producers with its speed and excellent production capacity. We also think out many solutions to protect machine from corrosion.
Characters: * 9 pcs of 100g/200g TCCA tablets with hole output in each circle, 3500 pcs/h.
* with pre-pressure wheel,has pre-pressure which guarantee the quality of tablets.
* Moulds are made of Titanium Alloy material.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in machine inner, avoid it of corrosion.
* With a frequency protection device, if pressure is too large, it can be automatically shut down to protect the body from damage.

Who has used it? (1)In china, Hebei Jiheng Chemical Group, the largest TCCA production company, has bought more than 5 sets from us. Its yearly production is more than 20000tons. With stable supply ability and good finished chlorine tablets, it has been the designated supplier for USA Lonza Company.
(2)Exporting, for example: It has arrived Braziland Japan
(3) Such annular100g 200g TCCA tablets are in production process of ZP80-9A by Japan company.

Following is the specification and ZP80-9A tablet press machine for your reference.

Model	ZP80-9A
Dies	9 sets
Max pressure	800 Kn
Dia of Tablet	80mm
Max Depth of Fill	60 mm
Thickness of Tablet	25-31mm
Turret Speed	1--10 r/min
Max Production Capacity	1-5400 pcs/h(adjustable)
Motor	30 kw 980 r/min 380 v / 50 hz
Overall Size	1430*1280*2120 mm
Net Weight	6000kg

Attention:
Large rotary tablet press our model ZP80-9, max pressure is 80T, it has pre-pressure with pre-pressure wheel. Currently 80T still is the highest pressure that rotary tablet press machine can reach in china mainland.

Tablet hardness our ZP80-9 have reached is 120-300kgf/c, which is the test result from Nanning chemical group and Hebei Jiheng chemical group. They gave us the qualified report after debugging. These are best prove for our machine ZP80-9 pressure.


This kind machine is not cheap. Sincerely suggest and warmly invite you to have field trips to china before ordering. We came across following feedbacks since last year that some people tried to copy our model ZP80-9 machine, they equiped wrong speed reducers for machines, but used 100T rotary to mislead buyers, they exaggerate and false propaganda, actually their machines could not to work continuously even 2 hours . Be careful if you come across.
