Intelligent Top Tier Manufacturer Extrusion Blow Moulding Machine HDPE PP PE Bottle Making Machine

Product Description

Product Description
Extrusion Blow Molding Machine
Maiwei extrusion blow moulding machine reasonable design, high output, run smoothly, high stability, power saving, easy operation, servo driving, full after sales, support competitive price
Suitable Bottle Size:20- 12000ml
Suitable Bottle Neck:18-38mm
Production Capacity:300-1,000BPH

Detailed Photos


Control System
Siemens human-machine operation interface, simple operation and high degree of automation. Intelligent regulation of energy usage to optimize energy consumption. Collect and record various data in the production process in real time, and through data analysis, help production managers optimize the production process, improve production efficiency, and perform fault diagnosis and prediction.
Electrical System
The electrical system includes a series of electrical components, sensors, actuators, controllers, etc., used to realize automation and precise control of the entire blow molding process. Maiwei stretch blow molding machines use imported electrical components such as Siemens , which have a long service life. Professional industrial fans are embedded in the electrical cabinet to ensure stable operation of electrical equipment in a variety of environments.
Extrusion System
The extrusion system of the stretch blow molding machine consists of a screw extruder, heating system, die head, pressure control system, cooling system, drive system, and automation control system. The inside of the die head is finely processed using a machining center imported from Japan, and the die head can move forward and backward. The storage tank type die head is made of high-quality materials and has a longer service life.
Diehead System
We can supply the die-mold,like the single layer die,Double-layer die,Outer layer center feeding double layer liquid level line die,Three die heads,Four die heads,Six die heads,Three-layer die,Four-layer die,Five-layer die,Six-layer die head.
Drum Mould1. Reasonable cold water runner design for heat transmission.
2. Cutting blade length& flatness for scraps easy removing.
3. Parison over-flow groove depth equal to product weight.
4. Suitable water inlet& outlet position for easy production.
5. precise cold shrinkage calculation to insure filling volume.
6. Multi-functional selection for mould action requirements.

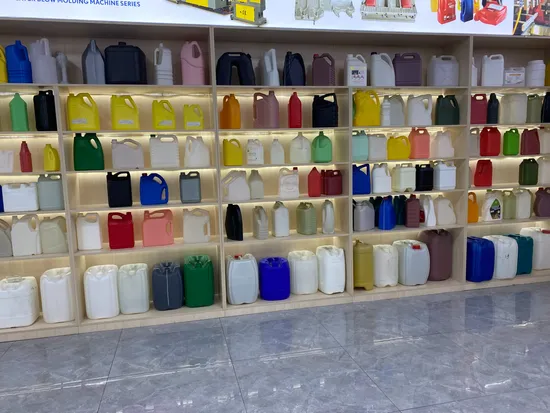

Bottle Photos
Product Parameters

model no.	Unit	MW-S20L
max.product volume	L	20
Dry cycle	pc/h	400
screw diameter	mm	80
screw L/D ratio	L/D	24-26
screw motor power	kw	30-37
screw heating capacity	kw	6.2-8.8
no.of heating zone	zone	4
output of HDPE	kg/h	100-120
oil pump drive power	kw	22
clamping force	kn	215
mold stroke	mm	350-800
size of mould(W*H)	mm	550*650
max.die diameter	mm	300
die heat capacity	kw	5.28
Storage capacity	L	4.4
blowing pressure	mpa	0.6-0.8
blowing air volume	M³/Min	0.8
cooling water pressure	mpa	0.3
water consumption	L/Min	60
weight of machine	ton	11.8
size of machine(L*W*H)	m	4.5*2.1*3.8

Packaging & Shipping

Packaging:
Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping:
At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience. Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products.
We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.
Our customers
FAQ
1.Q:Are you a factory or trading company? Where is your factory located?
A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory?
A: Quality is the key point, do what customers needs.In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time?
A:The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 1-2 months.
4.Q.Do you provide any spare parts with the machine?
A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service?
A:We offer over-all after sale service to meet customer's command,including on-line consulting and off line technical support.
