Farm Machinery Hydraulic Disc Plough

Product Description

Product Description

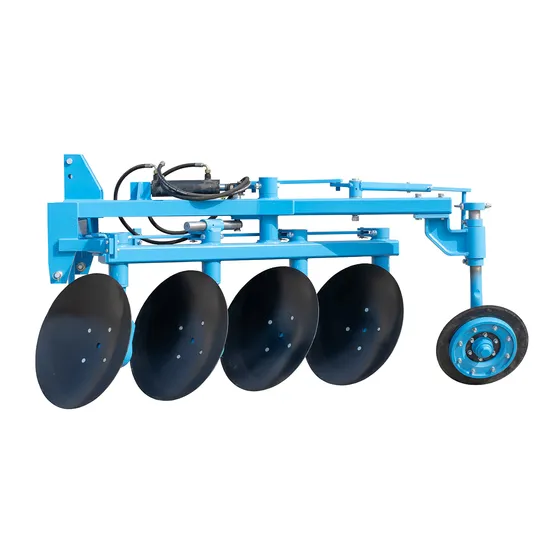

1LYS REVERSIBLE DISC PLOUGH
This series reversible disc plow is constructed to be horizontal swing. It's suitable for plowing up the dry cultivated land. The discs are rotating forward during work, so the friction from soil is small and the discs are not easy to be wrapped and blocked up by grasses. With the long edge and the good wearing resistance of the discs, it's easy to plough into the soil and the land surface is smooth after plowing. The productivity is high and the oil consumption is low. The plow has noticeable advantages for working on the terraced field and small block field.
Detailed Photos

Model	Number of discs	Size of disc (mm)	Working width(mm)	Weight(kg)	Working depth(mm)	Matched tractor (hp)
1LYS-325	3	660-710	750-900	626-650	250-300	75-90
1LYS-425	4		1000-1200	758-790		90-100
1LYS-525	5		1250-1500	1050-1100		100-120
1LYS-625	6		1500-1800	1300-1350		120-130
1LYS-725	7		1750-2100	1450-1520		150-180
1LYS-825	8		2000-2400	1600-1680		180-210

Company Profile
SHANDONG YUNTAI MACHINERY CO.,LTD., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading
exporter of agricultural machinery and accessories.
YUNTAI company produce 20,000 sets tractor implements and 1,500,000 pcs of
accessories annually and have its owe R & D team and strong production capacity.
YUNTAI company produce agricultural machinery and accessories matched with
18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting,
transporting and plant protection machinery. Main equipments are disk plow, disc
harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato
harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts
and so on.
YUNTAI company have advanced production lines of machining, welding,
punching, forging, sandblasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the
United States, Germany, France, Australia,Asia, Africa,etc.
