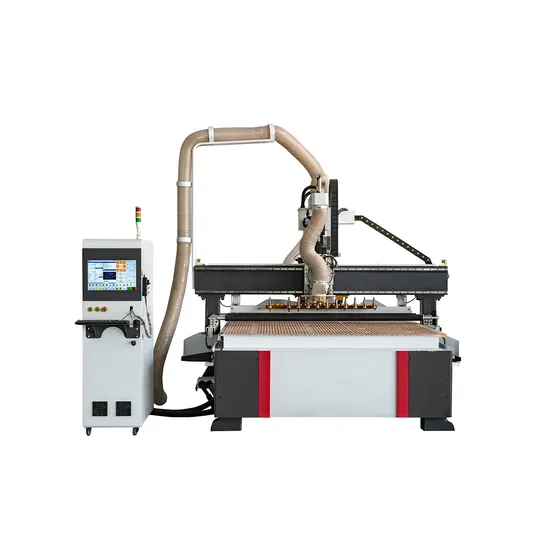

Woodworking Machine 4*8FT 1325 Atc CNC Wood Router for Wooden Furniture

Product Description

Product Description
1. Perfect Function, Automatic feeding, cutting ,slotting ,and optimization, drilling vertical hole, automatic cutting coherent, continuous processes, automatic unloading in one step, maximize efficiency output
2. Saving time and labor,materials,Automatic layout optimization,improve material utilization.High quantity,automatic design,automatic typesetting,no human intervention, minimizing error rate to minimum,ensure the quality of the order. 3. High efficiency, advanced disc automatic tool change program,without human intervention,program automatically.
4. Strong adsorption capacity, 7.5kw vacuum pump, vacuum table with 1325 vacuum holes, to suck tightly of the work piece,six partition design,strong adsorption materials of different area,greatly improve the work efficiency.
5. The position sensor and Positioning cylinder satisfy the requirement of the high precision orientation, highly automating production lines.

1) Designed for customized furniture, panel-type furniture, customized closet cabinet production, it has cutting, drilling, grooving and other processing functions, improves efficiency, save material and labor.
2)-Simple operation: installed with automatic typesetting software, simply enter panel size to automatically optimize the layout, workers can easily operating this machine after 3-5 hours training.
3) Machine frame is heat treated after welding to remove any welding stress or tension.
Product Parameters

Model	GD-1325A/GD-1325B
Working area	1300*2500mm
Table size	1740*3100mm
Z-axis working area	200-300mm(optional)
Resolution	+/- 0.01mm
Max Cutting Speed	70m/min
X and Y axis transmission	Germany Rack and Pinion
Z-axis transmission	Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Spindle	9.0KW, air-cooling ATC SPINDLE
Working Mode	1.5KW Servo motor
XY Transmission	Imported Rack
Z transmission	Taiwan TBI Ball screw
Reudcer	Japan Shimpo
Auto Tool Change	Yes, Linear type
Dust-collection function	Yes
Working table	T slot Vacuum table 6 And T clamp combination
Air pump	7.5KW
Dust collector	4KW,double bags
Inverter	HPMANT 11KW
Software	Artcam
Command	G code, HPGL,U00, mmg, plt
Lathe Structure	Seamless welded steel, trapezoidal stable and strong lathe bed
Auto Lubrication	Yes
Operating System	Taiwan JINKE Control System(Support multilingual)
Standard power	3P 380V,50Hz
Package	Plywood case
Warranty for the spindle	Half a year
Warranty for the machine	One year
Delivery time	10 working days
Packing size	4.6*2*2.21m

WORKING TABLE. The entire work table is divided into six partitions, which are controlled separately for easy adjustment.

SERVO MOTOR. 1.5KW LEADSHIN Servo motor Can bereplaced with Japanese Yasukawa Servo motor.

9KW ATC SPINDLE. 9KW ATC Air Cooling Spindle Can bereplaced with Italian HSD spindle Fast Speed and High efficiency.

Application
Application of Wood Machine.
1.Furniture wooden doors cabinets plate office and wood furniture table,chair door and windows
2.The wood products voice boc,game cabinets, computer table sewing machine table ,instrument
3.Plate processing insulation part, plastic chemical components ,PCB inner body of the car, bowling tracks.stair epoxy resin,ABS, PP.PE and the other carbon mixed compounds
4.Decorate industry, Acrylic PVC,MDF artificial stone.organic glass ,plastic and soft metal .such as copper, aluminum plate engraving and milling process.
Company Profile
Samet Intelligent Manufacturing Co., Ltd. has 16 years of production experience, 11 years of export experience, can provide hands-on technical support, has an independent research and development team, can provide continuous product and software upgrade and update services.Qualified after-sales technical teams in many countries, which can help customers solve after-sales problems locally.Even can help customers who with zero import experience to provide customs clearance to door service.Accept customized and OEM production, with 4 main production workshops, cnc router engraving machines, fiber laser cutting machines, other woodworking machinery, like sanding machine and pvc banding machine...Our new workshop is for 3d scanners,like laser scanner,3d Shining scanner, we provide the highest quality products, low prices and the best service, one-stop shopping, for all customers Free agent purchasing servicealways looking for powerful agent, work together, win-win.
FAQ
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate.
