High Efficiency Large Integrated Crusher for Wood and Large Straw Bales

Product Description

Large Integrated Wood Crusher
Introduction of Large Integrated Wood Crusher
The large integrated wood crusher (rotary crusher) is developed by introducing the advanced technology from home and abroad. The main type of wood integrated crusher is JP3000 and JP3600. The main structure of the crusher is frame, shell, power system, hydraulic system, electrical system, rotary material bin,the rotor, blades, and the feed inlet and discharge port. The rotor is driven by the driving device, and the rotor is positioned below the rotary material bin, and the feed inlet is relatively biased with the center of the hopper.
Working principle of Large Integrated Wood Crusher

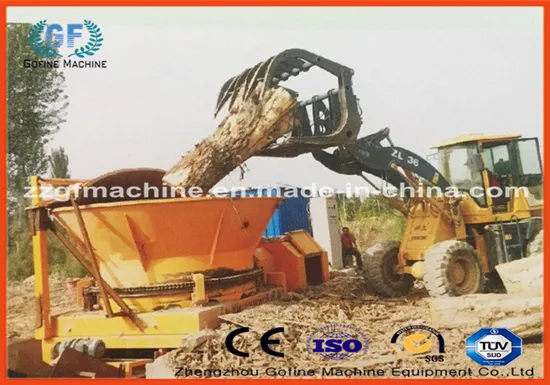

When the integrated wood crusher (rotary crusher) works, the motor drives the rotor to rotate at a high speed. At the same time, the feed hopper is also rotated by the motor, and the material is put into the hopper by the machine. While the hopper is rotated, the material on the inner wall of will be put the materials evenly on the rotor and rotate at a high speed. The material comes across the blades on the rotor and will be cut and tear to realize the initial crushing, after the first crushing,the material will down to the screen mesh in the crusher chamber under its self gravity and the impact force from the rotor. Then the material that meets the requirements will be discharged through the screen, and the other failure to meet the requirements will begin the second or third crushing process, until all of the materials meet the requirements.
Advantages of Large Integrated Wood Crusher
1)application of the advanced technology, the the integrated impact from biased inlet hopper and the dialing teeth play the role of auxiliary feeding, and the equipment uses frequency conversion technology. Once the rotor load is too large, the feed hopper will rotate reverse, so the equipment will not occur the material blocked fault.
2)Widely application.The equipment can be used for the crushing of large diameter materials such as tree roots and waste furniture. It can also be used for the crushing of the the whole packing straw bales. It is also much more suitable for small diameter wood and the edge of the plate. It has the advantages of fast feeding and high efficiency.
3)easy and convenient maintenance. The hydraulic type flipping device can turn over a large angle when the machine needs maintenance. After overturning, the rotor part is exposed. It is convenient to maintain and reduce the manual labors.
4)Low cost. the equipment adopts the several blades mounted on the rotor, the broken material is more complete and efficient, and the reasonable arrangement of the blades with advanced material improve the service life of the blades.
5)Highly full-automatic operation, the equipment realizes automatic control of all electrical components, can realize remote wireless control, reduce the use of labors, and also ensure the safety of production.
Technical parameters of Large Integrated Wood Crusher

Model	Power (kw)	Capacity (t/h)	Feed Dia(m)	Speed (r/min)	Blades (piece)	Size(m)	Weight (t)
3000	143.5	15-30	1800	960	4	4.5*3.0*3.25	14.6
3600	196.5	25-45	2350	960	4	5.3*3.6*3.55	16.8
