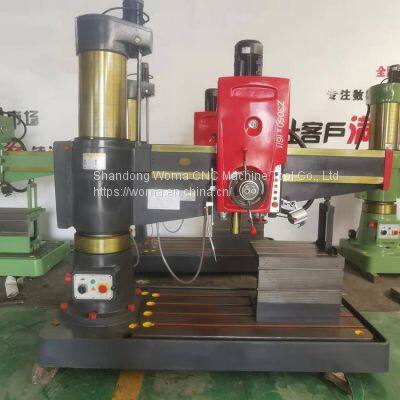

Woma CNC Z3050 radial drilling machine Zoje hydraulic clamping variable speed automatic feed

Product Details

Product Description

Product Description
The main performance characteristics:
Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance
Product main technical parameters

SPECIFICATIONS	Z3050×16
Max.drilling dia (mm)	50
Distance from spindle nose to table surface(mm)	320-1240
Distance between spindle axis and column surface (mm)	350-1640
Spindle travel (mm)	330
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	25-2000
Spindle speed step	16
Spindle feeding range(r.p.m)	0.04-3.2
Spindle feeding step	16
Rocker rotary angle (°)	±90°
Main motor power (kw)	5.5
Movements motor power (kw)	1.5
Weight (kg)	3500
Overall dimensions (mm)	2500×1060×2800

Company Information
Shandong Woma CNC Machine Tool Co., Ltd. is one of the leading machine tool manufacturers and exporters in Shandong Province, China. We have more than 20 years of manufacturer experience. Our main products include CNC machining centers, CNC gantry milling machines, vertical milling machines, horizontal milling machines, universal milling machines, gantry milling machines, ram milling machines and vertical drilling machines, with a total of 30 categories.
We are a manufacturer, not a trading company. All our products have passed CE and ISO9001 certification. Our main customers include KNUTH of Germany and Bernardo of Austria. You can trust our quality and service.
I hope we can establish a long-term business relationship with you.
