Product Description

Product Description

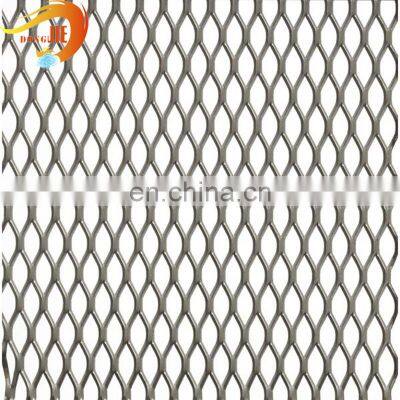

Aluminium Expanded Metal Mesh/Aluminium Sheet
Aluminum Expanded Metal is a sheet product that has been slit and stretched to a wide array of diamond shaped openings. Aluminum Expanded Metal offers savings in weight and metal, free passage of light, liquid, sound, and air, while providing a decorative or ornamental effect.
⟨Characteristics of Aluminium Expanded Metal Mesh ⟩
One of the benefits from the manufacturing of expanded metal is that the sheet retains its structural integrity because it has not undergone the stress of having shapes punched in it (like perforated sheet), and the mesh-like pattern will not unravel (like woven mesh can do). Expanded metal has been stretched rather than punched, reducing scrap metal waste; making it cost-effective. The main considerations when using expanded metal will be the chosen thickness and strand dimensions (weight and structural design requirements). Expanded metal can be almost transparent (depending on the opening); it has mechanical properties and is an excellent conductor.

Aluminium Sheet/Aluminium Expanded Metal Mesh Specifications
Mesh Thickness (mm)	SWM (mm)	LWM (mm)	Strip (mm)	Width (m)	Length (M)	Weight (kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69

Aluminium Expanded Metal Mesh Specialty:
Expanded metal sheet is made by first creating multiple slits in the sheet, and then stretching the sheet. The stretching creates a unique diamond pattern opening with one of the strands protruding at a slight angle. These raised strands can be flattened later in the process if desired. As you can see this process creates no waste (thus keeping down production costs) and it can add structural strength to the product.

Raised Aluminium Expanded Metal Mesh
	Mesh Size LW: 10.24MM Mesh Size SW: 5.64M Strand Width: 1.55MM Strand Thickness: 0.90MM Open Area Norm: 42% Open Area Max: 57% Weight: 1.496 Kgs/Sht Sheet Size LWM: 1220MM SWM: 1250MM
	Mesh Size LW:5.84MM Mesh Size SW:3.50MM Strand Width:0.79MM Strand Thickness:0.56MM Open Area Norm:51% Open Area Max:62% Weight:0.506kgs/sht Sheet Size:1250MM SWM:1250MM
	Mesh Size LW:28.58MM Mesh Size SW:9.52MM Strand Width:1.98MM Strand Thickness:1.20MM Open Area Norm:58% Open Area Max:58% Weight:4.00kgs/sht Sheet Size:2500MM SWM:1250MM
Flatted Aluminium Expanded Metal Mesh
Mesh Size LW:6.86MM Mesh Size SW:3.56MM Strand Width:1.27MM Strand Thickness:0.89MM Open Area Norm:52% Open Area Max:52% Weight:2.858kgs/sht Sheet Size:1250MM SWM:2500MM
Mesh Size LW:13.97MM Mesh Size SW:4.83MM Strand Width:1.80MM Strand Thickness:0.89MM Open Area Norm:57% Open Area Max:57% Weight:3.060kgs/sht Sheet Size:1250MM SWM:2500MM
Mesh Size LW:35.05MM Mesh Size SW:11.94MM Strand Width:2.34MM Strand Thickness:1.14MM Open Area Norm:71% Open Area Max:71% Weight:2.530kgs/sht Sheet Size:2500MM SWM:1250MM

About Our Expanded Mesh---DongJie
Our Expanded Metal Mesh is available from stock. As a largest manufacturer of expanded metals, we are able to offer Mild Steel Expanded Mesh, Stainless Steel panels and Aluminium Expanded sheets, all of which are available in a range of grades, with the most common being hot rolled, cold reduced, elector-zinc and galvanized steel and all conforming to the relative quality standards.
Expanded metal also comes as raised mesh or flattened mesh with different hole apertures and thicknesses to suit your individual applications. All materials can be coated using various methods, i.e. Galvanizing, painting, powder coating etc.
Stock here, it's very convenient for you and can save your time.
Go, Lets see Aluminium Expanded Mesh Applications!
The versatility of expanded metal makes it a suitable material for multiple applications such as: security screens, balustrade infill panels, and walkway mesh. In architecture it can be used as cladding or in the construction of bridges, ornamental features and art displays.
Industrial applications include exhibition stands, window guards, cages, shelving and expanded metal flooring. In the automobile industry it is used as car grilles, radiator grilles and as filtration systems. Where security precautions are important, security lathing is another use for expanded metal, and in fencing applications, it is often used when erecting scaling barriers. Some domestic applications include indoor and outdoor furniture, ceiling tiles etc.
Aluminium Expanded Metal Mesh Packaging
There are two options for the packaging:
Option ONE---packed in rolls.
1. Roll the mesh.
2. Packed with craft paper one roll by one roll.
3. In the paper box and using the buckle fastener, make it more tight and safe.
Option TWO---packed in piece.
1.One pc by one pc using the paper or foil.
2.Put in the high quality wooden carton.
3.Or as your required.
