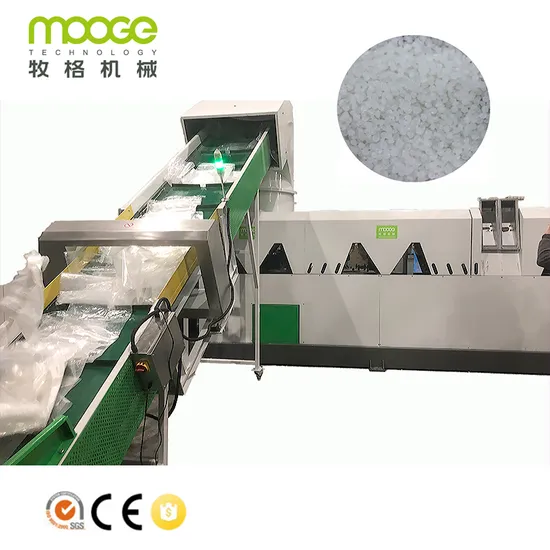

Two-stage Extrusion Plastic Film Recycling Granulator Production Line With Forced Feeding System

Product Description

Product Description
Film/Woven Bags Pelletizing Line
PP PE Pelletizing machine has two kinds of type. The RDS-Series plastic granulator machine is single stage plastic pelletizing machine with die face cutting system used for clean industrial waste PE film, PP shopping bags. What's more, the RSS-Series plastic granulator machine is double stages plastic pelletizing machine with die face cutting system used for washing recycled PE film, PE shopping bags material. With double stage it work more stable, produce more clean and more density granules.
Product Specification
RSS Series Single Stage Compacting Die-Face Cutting Pelletizing Line (For PE Film, PE Bags, PLA Film)

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
RSS-SJ85	85mm	28-33:1	55KW	150-200kg/hr
RSS-SJ100	100mm	28-33:1	75KW	200-300kg/hr
RSS-SJ130	130mm	28-33:1	90KW	300-400kg/hr
RSS-SJ150	150mm	28-33:1	110KW	400-500kg/hr
RSS-SJ160	160mm	28-33:1	132KW	500-600kg/hr
RSS-SJ180	180mm	28-33:1	160KW	600-800kg/hr
RSS-SJ200	200mm	28-33:1	200KW	800-1000kg/hr

RDS Series Single Stage Compacting Die-Face Cutting Pelletizing Line (For PE Film, PE Bags, PLA Film)

Model	Screw Diameter:mm	Screw L/D	Main Power:KW	Capacity:Kg/h
RDS-SJ 85	85	28-33:1	55	150-200
RDS-SJ 100	100	28-33:1	75	200-300
RDS-SJ 130	130	28-33:1	90	300-400
RDS-SJ 150	150	28-33:1	110	400-500
RDS-SJ 160	160	28-33:1	132	500-600
RDS-SJ 180	180	28-33:1	160	600-800
RDS-SJ 200	200	28-33:1	200	800-1000

Detailed Photos

Compacting Force Feeder
Compacting hopper opening by hydraulic system.
With glass window and light to check inside working. Barrel base with the water cooling system controlled by magnetic valve by temperature
The barrel touched material all made by stainless steel.
Single Screw Extruder
Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running;
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
Hydraulic Screen Changer
Double position board model
Board made by 38CrMnAl with forging, heating treatment won't deform after heating using.
Packaging & Shipping
1- For the loose cargo we will packing by Wooden box 2- For the Full container loading we are packing the machine by film and some on pallet accordingly 3- We can shipping the goods by air or by sea 4- We will send pictures of cargo loading to our client to check and keep recording 5- we can send cargo to client's warehouse to loading
Company Profile

After Sales Service
Service before sale 1, 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager ) 2,Professionally and patiently introduction,details pictures and working video to show machine Service on sale : 1,Test every machine and inspect the machine seriously . 2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok . 3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery. Service after sale 1, Free insurance for goods 2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
FAQ
Q: How long is the warranty time of the machine?A: One year for free
Q: What material is the machine made of?
A: Stainless steel and carbon steel.
Q: Are you manufacturer or trading company?
A: We are a professional plastic machinery manufacturer company located in ZHANGJIAGANG City, Jiangsu Province of China.
In order to have a better understanding of your needs,we need you to provide below information about your product:
1. Which kind of material you are going to process?
2. What is your required production capacity?
3. Do you have any other recycling machines?
