Coarse Grinding Machine Grinder
| US$2,500.00-5,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CSJ
Crushing Capacity
50-800kg/Hr
Certificate
CE
Material
SS304, SS316L
Spare Parts
Available
Advantage
Easy Operation Better Price
Type
Hammer Crusher
Drive
Electric
Crushing Degree
Coarse Crusher
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Tongs′ Features
Universal Tongs
After-Sales Service
Site Service or Online Technical Support
Warranty
All Its Life
Object
Herbs
Transport Package
Export Plywood Case
Specification
860*650*1020mm
Origin
Jiangsu
Production Capacity
20set/Month
Packaging & Delivery
Package Size
86.00cm * 65.00cm * 102.00cm
Package Gross Weight
200.000kg
Product Description

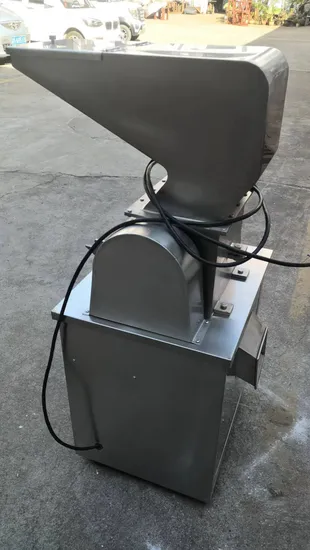

CSJ Rough PulverizerIntroduction and Features
This machine is widely used in pharmacy, chemical, metallurgy, food, building industry, etc. It is able to crush the hard and firm materials such as rubber, plastic, copper wire and so on. It also can be used as former process supporting equipment for micro-particle pulverizing.
The machine has durable and compact structure, it is convenient to operate or maintain, and stable in running and high in output. The machine is of vertical tilting type, made up of base, motor, crushing chamber cover and feed hopper. The feed hopper and cover can be tilted for a certain degree. It is convenient for clearing the material stock from crushing chamber. Working principle is as follows, the materials enter into crushing chamber through feed hopper, cut and crushed by the spinning blade mounted on the motor shaft and the cutter fixed installed on the triangle base in crushing chamber, and flow through the sieve to the outlet port automatically under centrifugal force, the rushing process is finished.
| Model | Inlet material diameter (mm) | Outlet material diameter (mm) | Output (Kg/hr) | Power (KW) | Shaft speed (rpm) | Overall dimension (mm) |
| CSJ-250 | ≤100 | 0.5~20 | 50~300 | 4 | 940 | 860*650*1020 |
| CSJ-500 | ≤100 | 0.5~20 | 80~800 | 11 | 1000 | 1120*1060*1050 |
