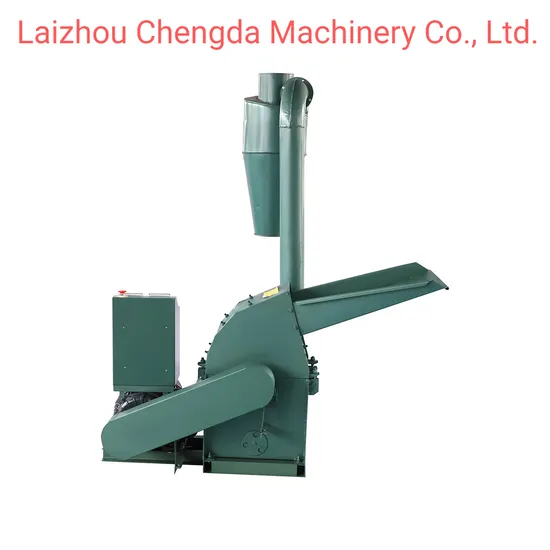

Gaoline Engine Driven Peanut Shell Hammer Mill

Gaoline Engine Driven Peanut Shell Hammer Mill

US$297.00-599.00 1 Piece (MOQ)

Basic Info.

Model NO.
CF198A
Spare Parts
Sieve and Knives
Sieve Size
2.8mm to 12mm
Type
Hammer Crusher
Object
Wood
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Drive
Gaoline Engiine
Transport Package
Plywood Box
Specification
small model for family use
Trademark
chengda
Origin
China
HS Code
8479820090
Production Capacity
5000 Piece Per Year

Product Description

Specifications 1.power: Diesel engine
2.capacity:600-800kg/h
3.raw material diameter:below 50mm
4.final powder below5mm

Advanced Technology Wood Hammer Mill

wood hammer mill are used for grinding the bio-mass like straw /stalk / wood chips / tree branches and forest waste into small granular material of less than 3-5mm,which is perfect size before pelletizing and briquetting.
The machine could be driven by the diesel engine, motor, tractor, etc.it is equipped with high carbon steel blade and works with high efficiency. Widely used in swine farm, wood factory, etc

we have the hammer mill capacity from 100kg/h to 1200kg/h.
we have the power Emotor and Diesel engine
we also have the wood cutter machine,that can cut the big diameter into small pieces
we have the pellet machine ,can make your powder into the sawdust pellet and fodder pellet.
we have the pellet cooler ,can make the hot pellet turn into the ordinal tempeter.
the hammer mill technical data as below:

MODEL POWER OUTPUT(KG/H) N.W/G.W(kg) PACKING SIZE(cm)
CF158 2.2kw SINGLE/3 PHASE 60-120 75/95 48*58*63
CF198 7.5HP GASOLINE 200-300 120/140 90*58*102
CF198 4KW 120/140 90*58*102
CF420B 7.5KW 400-600 260/320 112*82*107
CF420C 11KW 320/360 112*82*107
CF420A 15HP DIESE 330/360 147*73*109
CF420A 22HP DIESE 350/390 147*74*111
CF500A 55HP DIESE 800-1100 800/840 150*142*123
CF500B 22KW 600/630 124*97*106


FAQ
1. How to order?
After you decide to purchase, we will send you proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea.
2. Related products?
CF158
3. How to get to your factory?
Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory.
4. How long is your warranty period?
One year
5. How does your factory do quality control?
Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end.
Our Services
1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.

Contact informaion:
Sales Director: Ruby
Tel: +8615264530427
Address: Sanlihezi Village, Wenfeng District, Laizh
