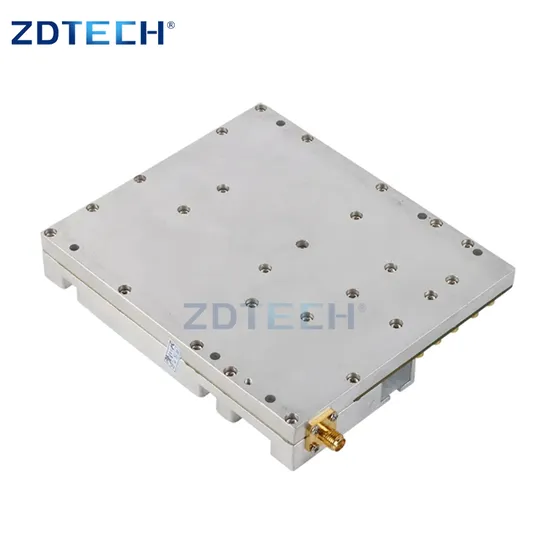

GSM900 RF for Repeater Imsi Catcher Power Amplifier Modules
| US$1,000.00-1,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZD-PAL-B8-20W
Support Network
WiFi GPS GSM
Information content
Data
Certification
ISO
Condition
New
Output Power
20W
Working Voltage
DC+28V
Output RF Port
SMA-Kfd
Working Current
<4A
Dimensions
130X110X21mm
Vswr
<1.5
Operating Temperature
-25-+55degree
Transport Package
by Box
Specification
130x110x21mm
Trademark
ZD TECH
Origin
China
HS Code
8517709000
Production Capacity
2000pieces/Month
Packaging & Delivery
Package Size
15.00cm * 15.00cm * 5.00cm
Package Gross Weight
3.000kg
Product Description
B8 20W Electronic Fence RF Amplifier Module| Channel Name | Transmitting Channel (PA) | Receiving Channel (LNA) |
| Working Frequency | 925-960MHz | 880-915MHz |
| Output Power | 43±1dBm | -10±1dBm |
| Gain | 50±1dB | 25±1dB |
| Gain Adjustment Range | ≥25dB | ≥25dB |
| Minimum Gain Adjustment | 1dB | 1dB |
| Automatic Level Control (ALC) | ≥10dB | / |
| In-band Fluctuation | ≤2.0dB | ≤2.0dB |
| Adjacent Channel Power Ratio (ACPR) | ≤-45dBc | / |
| Error Vector Magnitude (EVM) | ≤5% | / |
| Noise Figure | / | ≤1.8dB |
| Maximum Input | 0dBm | -10dBm |
| Out-of-band Spurious | 9kHz~1GHz@≤-36dBm/30kHz 1GHz~12.75GHz@≤-30dBm/30KHz | |
| VSWR | ≤1.5 | |
| Working Power Supply | ≤3.5A/DC+28V | |
| Operating Temperature | -25~+55ºC | |
| RF Port | PA-IN/LNA-IN/LNA-OUT: MCX-KHD; PA-OUT: SMA-KHD | |
| Power Connector | 5569 Connector, Spacing 4.2MM, Curved Needle Seat 2*3PIN | |
| Power Monitoring Interface | PIN 1: RS485A PIN 4: RS485B PIN 2: L/EN(empty) PIN 5: GND PIN 3: P/EN(empty) PIN 6: +28V | |
| Monitoring Type | RS485 Monitoring Protocol, Baud Rate 9600/19200 Optional (default 19200) | |
| Dimensions | 130x110x21mm | |
