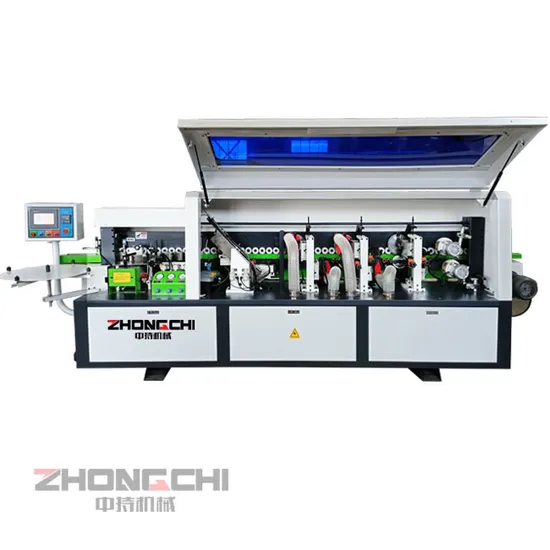

6 Functions End Trimming Automatic Edge Bander Edge Banding Machine

Product Description

Features: Product Name: Automatic edge banding machine DELTA PLC control system Strong body Easy operation Electrical Up and down Three Feeding Speed option OEM Customized Function can option Detail Pictures:
Technical Parameters:

Working thickness	10-50mm
Min. working width	≥80mm
Min. panel length	≥160mm
Feeding speed	15m/min
Tape thickness	0.4-3mm
Air pressure	0.6Mpa
Total power	6.8KW
Voltage	380v,50hz, 3phase
Power of main drive motor	1.5KW
Weight	900kg
Overall size	4200*750*1500mm

Applications: Applicable products: solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester, melamine and wood, and so on.
Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high- quality electrical components.
Packing and Shipping:
Meeting:
Workshop:
FeedBack:
Certificate:
FAQ: Q1: What is the brand name of the Machine?
A1: The brand name of the Woodworking Machine is Zhongchi Brand
Q2: Where is the Woodworking Machine manufactured?
A2: The Woodworking Machine is manufactured in Qingdao,China.
Q3: Is the Woodworking Machine certified?
A3: Yes, Have CE certification.

Q4:I am a fresh man for this machine,what kind of machine I should choose?
A4:Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.

Q5:When I got this machine, but I did not know how to use it,What should I do?
A5:We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or Video. Or even send our engineers oversea to help you.

Q6:If some problems happened to this machine during warranty period,what should I do?
A6:We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

Q7:What is the MOQ?
A7:MOQ for our products is 1 set machine, we could send it to the nearest port to you.
