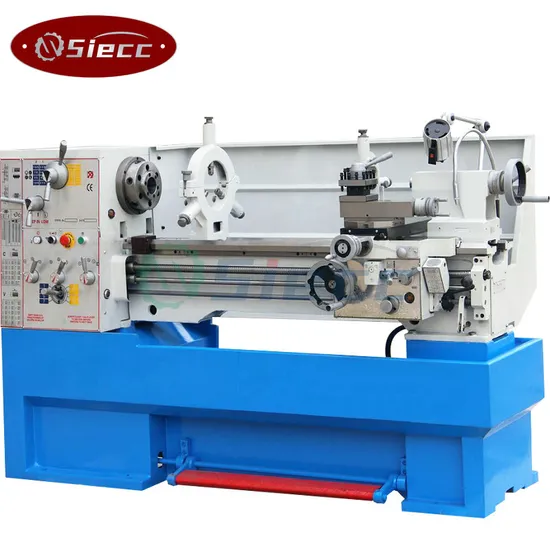

Cq 6232g/36g Lathe Machine with High Precision and Good Price
| US$3,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ 6232G/36G LATHE MACHINE
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Transport Package
Wooden Box
Specification
CE/ISO/SGS/GOST CERTIFICATION
Trademark
SIECC
Origin
Haian Nantong China
Production Capacity
200 Sets / Month
Product Description
Precision ground and hardened bedwaysThe spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Three different length beds are available
Spindle speed range 70-2000R/MIN
D1-4 cam lock spindle nose
51MM spindle bore for optional
| Model | CQ6232G | ||
| Capacity | Swing over bed | 330mm | 13" |
| Swing over cross slide | 198mm | 7-25/32" | |
| Swing in gap diameter | 476mm | 18-3/4" | |
| Swing in length | 210mm | 8-1/4" | |
| Centeer height | 166mm | 6-1/2" | |
| Admits between | 750mm/1000mm | 30"/40" | |
| Bed width | 187mm | 7-3/8" | |
| Bed length | 1405mm/1655mm | 55-5/16"/65-1/8" | |
| Bed Height | 290mm | 11-13/32" | |
| Spindle | Spindle bore | 38mm | 1-1/2" |
| Spindle nose | D1-4" | ||
| Taper in nose | MT No.5 | ||
| Speeds number | 8 | ||
| Range of spindle speed | 70-2000rpm | ||
| Travel | Cross slide width | 130mm | 5-2/32" |
| Cross slide travel | 170mm | 6-11/16" | |
| Compound rest width | 80mm | 3-1/8" | |
| Compound rest Travel | 95mm | 3-9/16" | |
| Lead screw diameter | 22mm | 7/8" | |
| Lead screw thread | 8T.P.I. or 3mm | ||
| Feed | Feed rod diameter | 19mm | 3/4" |
| Cutting tool max section | 16*16mm | 5/8*5/8" | |
| Threads imperial pitches | 34Nos.4-56T.P.I | ||
| Threads metric pitches | 26Nos.0.4-7mm | ||
| Longitudinal feeds imperial | 32Nos.0.002-0.0548"/rev | ||
| Longitudinal feeds metric | 32Nos.0.052-1.392mm/rev | ||
| Cross feeds imperial | 32Nos.0.0007-0.0187"/rev | ||
| Cross feeds metric | 32Nos.0.014-0.380mm/rev | ||
| Tailstock | Quill diameter | 32mm | 1-1/4" |
| Quill travel | 100mm | 3-15/16" | |
| Others | For main motor | 2PH,3PH or 2PH,1PH | |
