Pnmf Series New Design D2 Material Plastic Grinding Powder Miller Machine

Product Description

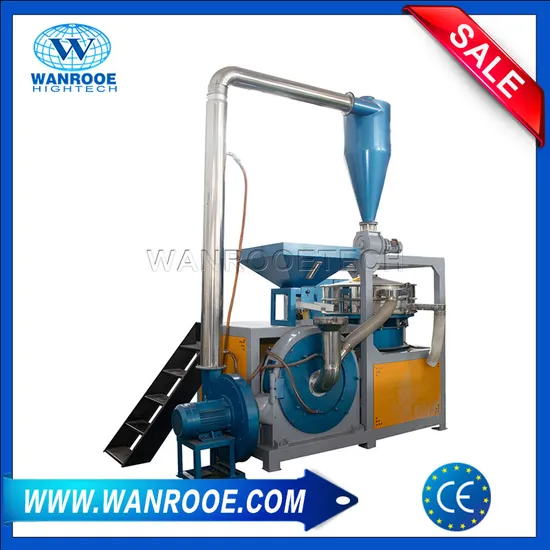

PNMF Series New Design D2 Material Plastic Grinding Powder Mill Machine
Applications
The pulverizer range is designed for pulverizing of semiriqid, brittle and impact resistant materials where a powdered product is reauired.Granulate of size 6-8 mm is fed via vibrofeeder to the rotating high speed serrated discs to produce a powder product in the required micron size and where the final size is determined by the adjustable dise space and also the vibrating machine which are intalled on the pulverizer.Typical applications are the pulverizing of LDPE,HDPE,UPVC,PC,PP and various other plastics.
Description:
The disc grinding pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Features:
1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine tuning.
7. The mill use the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.

Advantages
1. Long service life of the disces between resharpenings
2. Fast and easy replacement and adjustment of discs
3. Low residence time means lower thermal stress on the process material
4. High through put capabilities.
Technical Parameters

Model	PNMF-300	PNMF-400	PNMF-500	PNMF-600	PNMF-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5kw	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Air Lock Motor (kw)	0.75	0.75	0.75	0.75	0.75
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

Delivery
FAQ
1, Are you a trading company or manufacturer?
A: WANROOETECH is a Factory-Outlet Platform for excellent manufacturers only!
2, As the shipping period, will take a long time, how can you make sure the machine won't be broken?
A: Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

3, I am a foreign customer, if the product's part is broken, how can get help from you?
A: Some standard configurations you can buy in your local market, such as SIEMENS Motor.

4, Could I know the process of manufacturing production after placing the order?
A: Our sales will share the video after testing, or take online video when testing the machine. Of course, also welcome you to our factory to see machine testing.

5, Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings according to the quantity.

6, Where is your factory located? How can I visit there?
A: Our company is located in Zhangjiagang City, China, really glad to invite you to come to our office to have a face to face meeting before we build to order.

7, We are new buyers, do not know how to buy? Can we use our own freight forwarding?
A: We are a very experienced company, we will provide you with the guidance of security. We have long-term freight forwarders partners to ensure the delivery of goods to various countries for our customers. You can use your freight forwarding.
Customer Feedback:
Our Service
1. One year guarantee for the whole machine
2. 24 hours technical support
3. Our engineers can provide services overseas. The service is free, but the charge of round air-tickets, food, and the hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training services which help operators handle the machine well.
