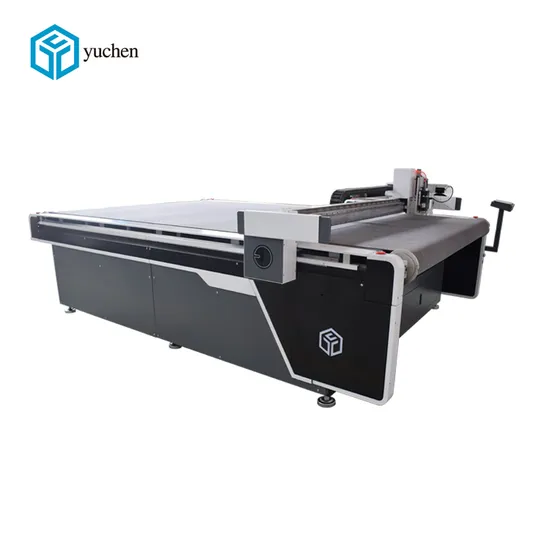

Yuchen Automatic PVC Foam Kt Board CNC Cutting Machine for Price Sale
| US$13,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YC-1625A
Condition
New
Control
Automatic
Application
Plastic, Kt Board,Corrugated Cardboard, PVC,Acrylic,etc
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
2500*1600mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month
Product Description
Yuchen automatic PVC foam KT board CNC cutting machine for price saleModel: YC-1625A Machine size can be customized
Brand: Yuchen
Applicable cutting materials:KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
Application: widely used in advertising industry.
Functions: cutting(oscillating cutting tool),
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
| Model | YC-1625A | YC-1630A | YC-1830A |
| Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | ||
| Safety device | Infrared induction is used, sensitive response, safe and reliable | ||
| Maxi cutting speed | 1200mm/s | ||
| Translational velocity | 1500mm/s | ||
| Applicable materials | KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc | ||
| Multifunctional head | oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position | ||
| Cutting thickness | 0.1-10.0mm(subject to the material cutting) | ||
| Cutting tolerance | ±0.1mm | ||
| Transmission interface | Network transmission | ||
| Transmission system | Motor:Panasonic Linear rail:SMTYCC | ||
| Fixed mode | Vacuum absorb | ||
| Supply voltage | AC 220V 380V±10%,50HZ | ||
| Rated power | 11KW | ||
