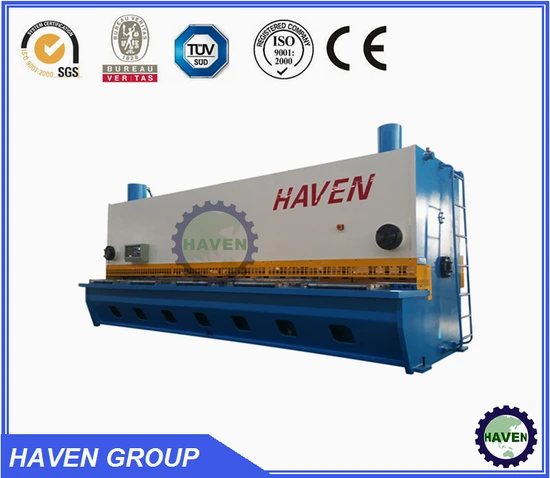

Hydraulic Shearing Machine Hydraulic Cutting Machine

Product Description

Hydraulic Shearing Machine Hydraulic Cutting Machine
Main functions:
1. The machine frame welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation.
2. As the cutting beam of machine has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7. Motorized adjusting and manual adjusting for the back gauge.
Main specification:

Model	Mild Steel (450MPA)	Cutting Length(mm)	Depth Of Throat(mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor	L× W× H(mm)	Weight(t)
4× 2000	4	2000	80	750	0.5° -2°	14	5.5	2600× 1680× 1750	3.8
4× 2500	4	2000	80	750	0.5° -2°	14	5.5	3125× 1750× 1765	4.5
6× 2500	6	2500	80	750	0.5° -1° 30′	14	7.5	3100× 1725× 1900	5.3
6× 3200	6	3200	80	750	0.5° -1° 30′	12	7.5	3935× 1840× 1995	6.5
6× 4000	6	4000	80	750	0.5° -1° 30′	10	7.5	4650× 1840× 2100	8.5
6× 5000	6	5000	80	750	0.5° -1° 30′	8	7.5	5650× 2050× 2400	10.5
6× 6000	6	6000	80	750	0.5° -1° 30′	8	7.5	6650× 1980× 2380	15.2
8× 2500	8	6000	80	750	0.5° -1° 30′	14	7.5	3135× 1840× 2075	6
8× 3200	8	3200	80	750	0.5° -1° 30′	12	7.5	3850× 1990× 2050	6.8
8× 4000	8	4000	80	750	0.5° -1° 30′	10	7.5	4650× 1890× 2075	9
8× 5000	8	5000	80	750	0.5° -2°	7	15	5650× 2050× 2400	12.5
8× 6000	8	6000	100	750	0.5° -2°	7	15	6805× 2115× 2715	19.8
10× 2500	10	2500	100	750	0.5° -2° 30′	10	15	3195× 1915× 2205	8
10× 3200	10	3200	100	750	0.5° -2° 30′	8	15	3895× 1900× 2235	8.8
10× 4000	10	4000	100	750	0.5° -2° 30′	6	15	4695× 1970× 2270	9.15
10× 5000	10	5000	100	750	0.5° -2° 30′	5	15	5700× 2115× 2715	16
10× 6000	10	6000	100	750	0.5° -2° 30′	5	15	6905× 2115× 2800	22
12× 2500	12	2500	100	750	0.5° -2° 30′	10	15	3195× 2000× 2210	8.3
12× 3200	12	3200	100	750	0.5° -2° 30′	8	15	3895× 1950× 2240	9.2
12× 4000	12	4000	100	750	0.5° -2° 30′	5	15	4710× 1950× 2450	13
12× 5000	12	5000	100	750	0.5° -2° 30′	5	18.5	5750× 2115× 2800	20
12× 6000	12	6000	100	750	0.5° -2° 30′	5	18.5	7150× 2300× 3100	29
16× 2500	16	2500	100	750	0.5° -2° 30′	8	15	3215× 1970× 2340	8.7
16× 3200	16	3200	100	750	0.5° -2° 30′	7	15	3915× 1970× 2455	11
16× 4000	16	4000	100	750	0.5° -2° 30′	6	15	4715× 2010× 2590	15
16× 5000	16	5000	100	750	0.5° -3°	5	22	6000× 2300× 3000	23
16× 6100	16	6100	80	750	0.5° -3°	5	37	7250× 2400× 3100	36
20× 2500	20	2500	100	750	0.5° -3°	6	22	3235× 2020× 2465	10.5
20× 3200	20	3200	120	750	0.5° -3°	5	30	4150× 2065× 2755	18
20× 4000	20	4000	120	750	0.5° -3°	4	30	4955× 2125× 2885	21
20× 5000	20	5000	120	750	0.5° -3°	4	37	6000× 2300× 3050	29
25× 2500	25	2500	120	750	0.5° -3.5°	5	37	3465× 2130× 2710	15
25× 3200	25	3200	120	750	0.5° -3.5°	5	37	4120× 2200× 3000	21
25× 4000	25	4000	120	750	0.5° -3.5°	4	37	4950× 2200× 3150	26
30× 2500	30	2500	120	750	0.5° -3.5°	4	37	3465× 2170× 2770	16
30× 3200	30	3200	120	750	1° -3.5°	3	37	4200× 2300× 3200	23
