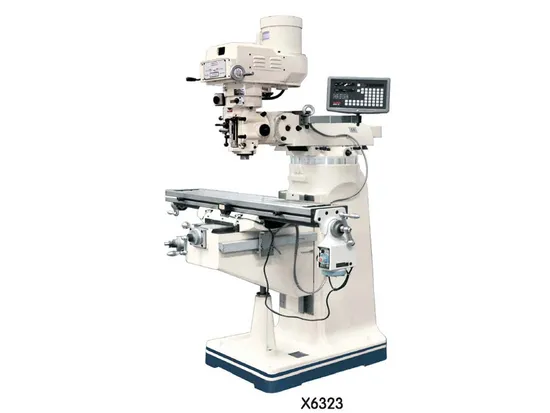

Vertical and Horizontal Turret Milling Machine Metal Universal Milling Machine with Dro
| US$3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4HW, 5HW
Type
Worktable Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Specification
X6330
Origin
China
HS Code
84595900
Production Capacity
1000PCS/Year
Product Description
Knee type unisersal milling machine, with auto feeding worktable, vertical milling head.Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline, etc.
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Technical specifications:
| Specifications | Units | 4HW | 5HW |
| Table size | mm | 1270x254 | 1370x305 |
| Table travel | mm | 780/380/400 | 810/380/400 |
| T slot(number-width-pitch) | 3-16-65 | 3-16-65 | |
| Spindle taper | (V) R8/ISO40 (H) ISO40 | (V) R8/ISO40 (H) ISO40 | |
| Spindle speed range | rpm | (V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps | (V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps |
| Optional:variable 65-4000 | Optional:variable 65-4000 | ||
| Spindle travel | mm | 127 | 127 |
| Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) | 0.04,0.08,0.15 (3 steps) |
| Distance between spindle nose and table surface | mm | 10-450 | 10-450 |
| Distance between horizontal axis and table surface | mm | 0-400 | 0-400 |
| Main motor power | kw | 2.2(V)3(H) | 2.2(V)3(H) |
| Head rotation (left - right ) | ° | ±90° | ±90° |
| Head rotation (front - rear) | ° | ±45° | ±45° |
| Weight | kg | 1750 | 1850 |
| Overall dimension | mm | 1550x1650x2250 | 1550x1650x2250 |
