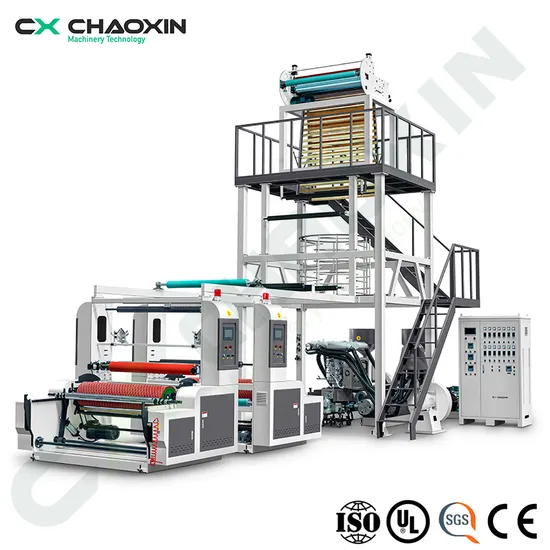

High Speed ABA Double Layer Co-Extrusion Rotary Die Head Blown Film Machinery 2 Two Layer Biodegradable HDPE LDPE PE Plastic Film Blowing Machine Price

Product Description

Product Description

Model		CX-ABA-1100	CX-ABA-1300	CX-ABA-1600	CX-ABA-2200
Suitable materials		HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE	HDPE,LDPE,LLDPE
Film width		500-1000mm	600-1200mm	1000-1500mm	1500-2050mm
Film thickness		0.02-0.20mm	0.02-0.20mm	0.02-0.20mm	0.02-0.20mm
Output	HD	120kg/h	150kg/h	170kg/h	210kg/h
	LD	135kg/h	165kg/h	185kg/h	225kg/h
Extrusion unit
Screw diameter		Φ55*2	Φ60*2	Φ65*2	Φ70*2
Screw L/D		30:1 | 32:1 High speed screw	30:1 | 32:1 High speed screw	30:1 | 32:1 High speed screw	30:1 | 32:1 High speed screw
Screw material		Double alloy material	Double alloy material	Double alloy material	Double alloy material
Barrel material		Double alloy material	Double alloy material	Double alloy material	Double alloy material
Barrel cooling fan		550W*6	550W*6	550W*7	550W*8
Main motor		18.5kw*2	22kw*2	30kw*2	37kw*2
Barrel temperature control		3 ZONE*2	3 ZONE*2	3 ZONE*2	4 ZONE*2
Average power consume		40kw	45kw	60kw	85kw
Die unit
Die head	HD	Φ80-100mm	Φ100-120mm	Φ120-180mm	Φ150-200mm
	LD	Φ200-220mm	Φ100-250mm	Φ220-320mm	Φ320-400mm
Temperature control		ZONE 10	ZONE 10	ZONE 10	ZONE 12
Air ring		Double vent air ring	Double vent air ring	Double vent air ring	Double vent air ring
Air blower		5.5kw	7.5kw	7.5-11kw	11kw
Take-up unit
Roller width		1100mm	1300mm	1600mm	2200mm
Effictive width		1000mm	1200mm	1500mm	2050mm
Take-up speed		10-120m/min	10-120m/min	10-120m/min	10-120m/min
Take-up motor		1.5kw	1.5kw	2.2kw	3.7kw
Winding type		Surface friction winding	Surface friction winding	Surface friction winding	Surface friction winding
Winding speed		10-120m/min	10-120m/min	10-120m/min	10-120m/min
Voltage		380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE	380V,50HZ,3PHASE
Machine weight		4T	4.5T	5.5T	7.5T
Machine size (L*W*H)		6*4*6.2m	6*4*6.5m	6*4*7.5m	7*4.5*9.5m

Company Profile

Exhibition

Customer Reviews

Certifications

Cooperative partner

Packaging & Shipping

FAQ

Q: What are the core advantages of your blown film machines?
A: Our blown film machines feature a choice of original German Siemens, General Electric, or Brooke motors. They achieve energy savings of up to 30% compared to competitors, with a production output surpassing the industry average by 20-30%. Our machines offer exceptional stability, compatibility of components, and a three-year warranty on core parts, as opposed to the standard one-year warranty in the industry.
Q: How do your blown film machines ensure energy efficiency and high output?
A: Our machines utilize advanced energy-saving technology and efficient motors, resulting in an energy savings rate exceeding 30%. Additionally, our optimized design ensures production output surpasses industry norms by 20-30%.
Q: What quality assurance do you offer for your blown film machines?
A: We provide a three-year warranty on the quality of core components, which exceeds the standard one-year warranty in the industry. Each machine undergoes rigorous quality checks and testing to ensure consistent performance and reliability.
Q: Can your blown film machines produce high-precision films?
A: Yes, the films produced by our machines exhibit high precision. We can also provide excellent raw material formulation data to guarantee product quality.
Q: Do you provide formulation data for raw materials?
A: Absolutely, we offer detailed raw material formulation data to assist you in achieving superior production results.
Q: What stability features does your blown film machine offer?
A: Our machines are meticulously designed for exceptional stability. High-quality core components and stringent quality inspection procedures ensure reliable long-term operation.
Q: Could you provide more details about the warranty period?
A: The warranty period for our core components is three years, covering motors and other vital components. This extended warranty provides greater reassurance for your investment.
Q: How efficient is the production output of your blown film machines, and is the operation user-friendly?
A: Our machines boast an output exceeding industry standards and are user-friendly in operation. We also offer training and technical support to ensure you can maximize the potential of the machine.
Q: Do you have success stories or client testimonials?
A: Certainly, we have numerous satisfied client testimonials and success stories that we can provide for your reference.
Q: How can I get in touch for more information?
A: Feel free to contact us through the Made-in-china platform's online messaging feature. You can also find our contact details on our official webpage. We are ready to provide detailed information and answer any queries you may have.
