Reverse Osmosis water treatment system / filtering machine purification plant

Product Description

Product Description

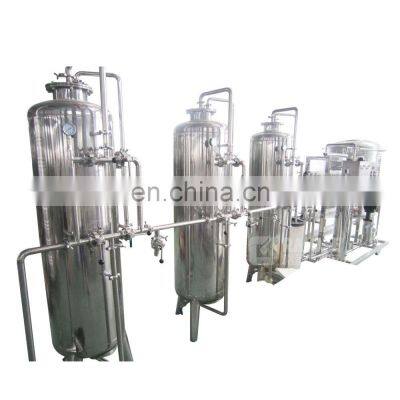

Reverse Osmosis water treatment system / filtering machine purification plant Product DescriptionMachine description:1.According to the customer's local water testing report ,we adopt different water treatment equipment to filter drinking water of pure water or mineral water,etc.2.This water treatment equipment includes raw water tank, raw water pump,silica sand filter, active carbon filter, ion exchanger, high pressure pump,precision filter, Reverse Osmosis,Ozone generator sterilizer,UV, Mixing oxidizing tower,water pump, water storage tank, connection pipes.3.The raw water tank is made of SUS304 or PP material. Raw water pump provide the pressure to silica sand filter/active carbon filter. 4.Silica Sand filter get rid of turbidity, suspended matter, organic matter, colloid and so on. Active carbon filter remove the color, free chloride, organic matter, harmful matter and so onion exchanger preventany deposition of large Particles, most of the bacteria, and viruses into the RO membrane.5.The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter,impurity. 6.High pressure pump Provide the high pressure to RO membrane(at least 2.0 MPa).RO system is the main part of pure water treatment plant. The RO membrane's desalting rate.7.Can reach as high as 99%, it is capable of removing over 99% of ions, bacteria's, particles and 98% of organic. It adopts the stainless steel filter membrane.Ozone sterilizer or UV sterilizer is for killing the organism bad to health.Reverse Osmosis water treatment system / filtering machine purification plant Water treatment system / filtration system:Material: SS304/316Source of waterCapacityWater pumpFilter mediaRO membranceRiver/well/spring/lake/sea/tap water/underground water / mountain water 2-100T/HCNPGrundfosQuartz sand/active carbon/sodium ion/hollow fiber filterFilmtec dow/USA hydranautics/USANaturally oxygen-rich waterPure waterRO waterMineral waterSpring waterUltrafiltrationReverse osmosisReverse osmosisUltrafiltrationUltrafiltrationAutomatic control systemFloat ball/solenoid valve/pneumatic butterfly valveFilling waterWe can make water purification system as per difference water qualityTypes of waterMineral water pure water spring water RO water oxygen-enriched water alkaline water,etc Detailed ImagesWater filling machine The automatic monoblock water machine is mainly used for producing PET bottled mineral water, pure water and non-carbonated drink, and washing,filling,screwing is integrated in one unit, short the water contacting with outside, improve the sanitation condition,production capacity and economic benefit. Blowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.Semiautomatic Labeling Machine: 1. Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round,square and flat bottles.It adopts seamless tube, the distribution of low-pressure steam drum and the spout of steam use the separation style which make the tunnel smooth.2. Steam generator the water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet.Working system is all automatically controlled.After connecting the water supply and power supple for 5 minutes or so,it can output the steam continuously with high working efficiency.Semiautomatic Shrink Packing MachineFlow: Putting on bottles by manual→ pushing bottles→ film covering and sealing→ shrinking→ coolingCapacity: 3-5packages/minMax. Packing size: 450*400*330mmMin. Packing size:250*60*140mmBottle diameter: 50mm-110mmPower: 20kw/12kw Company information Workshop detail Our team Our exhibition Project cases FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
