Linyi Automatic Sanding Machine for Calibrating Plywood Thickness

Product Description

Main Technical Parameters

1	Model	BSG2113Rz
2	sanding width	40-1300 mm
3	sanding thickness	2-80 mm
4	sanding belt size	1330*2620 mm
5	voltage standard	415 V , 50 Hz
6	1# sanding head main motor power	Motor 75 kw, φ300mm steel roller
7	conveyor motor power	7.5 kw
8	conveying speed	20-40 m/min
9	lifting motor power	0.75 kw
10	brushing motor power	0.75 kw
11	total motor power	84 kw, with inverters
12	operating pressure	0.6 MPa (constant pressure)
13	dust extraction	12000 m³
14	dust extraction speed	25-30 m/s
15	machine size	2300*2900*2440 mm
16	machine weight	5500 kgs

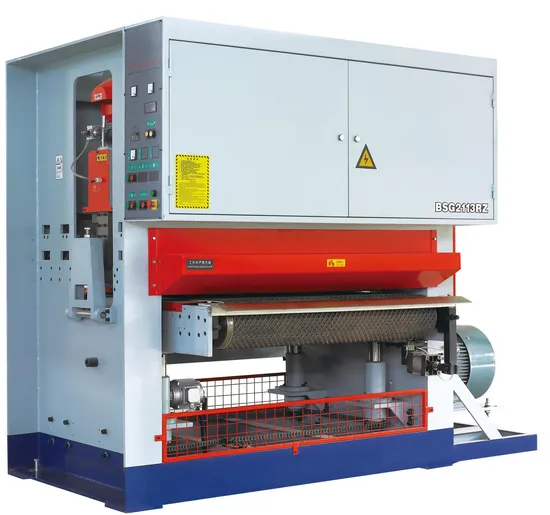

Machine photos for reference
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and ma-chine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.

Frequently Asked Questions
1. What products does your company offer?
Our company specializes in manufacturing and supplying equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
• Brazil (where we have local distributors)
• Argentina
• Paraguay
• Fiji
• Pakistan
• Bulgaria
• Ghana
We have experience working with these countries and can arrange shipping and handling in compliance with local regulations.
