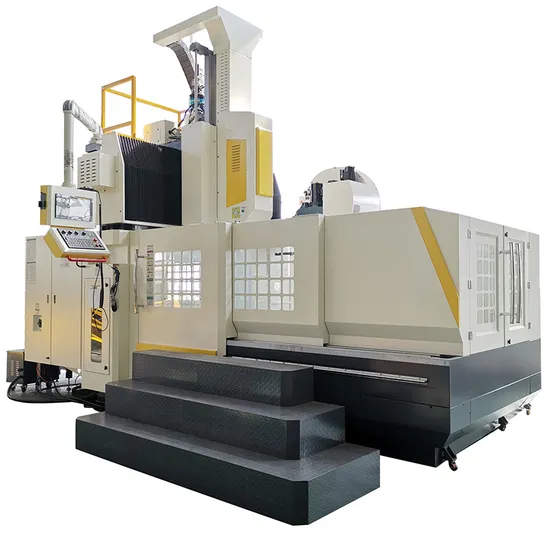

Hot Sales Xh3025 CNC High Precision Big Large Gantry Milling Machine Center with Universal Head
Basic Info.
Model NO.
bw
Type
Knee-and-Column Milling Machine
Object
Metal
Structure
Knee Type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight (Kg)
190000
Table Size
1600*360mm
Travel
720/320/460
Arm Travel
550mm
T-Slots(No./Width/Pitch)
3/18/80
Transport Package
Customized
Specification
Customized
Trademark
bw
Origin
China
Product Description
| Max dia | MM | 2500 | 3150 | 4000 |
| Table dia | MM | 2250 | 2830 | 2830/3150 |
| Max workpiece height | MM | 1600 | 1600 | 2000 |
| Max workpiece weight | T | 10/20 | 10/20 | 10/20 |
| Max torque of table | KN.M | 63 | 63 | 63 |
| Table rotate speed range (16step) | R/MIN | 2-63 | 2-63 | 2-63 |
| Max cutting force of the vertical holder | KN | 32 | 35 | 35 |
| Vertical toolholder move limit | = | ±30° | ±30° | ±30° |
| Range of feed rates(stepless) | MM/MIN | 0.1-500 | 0.1-500 | 0.1-500 |
| Horizontal travel of rail head | MM | 1400 | 1725 | 2150 |
| Ram travel of rail head | MM | 1000 | 1000/1250 | 1000/1250 |
| Fast moving speed of tool heads | MM/MIN | 3500 | 3500 | 3500 |
| Knife rod cross-section size (W.D.) | MM | 40x50 | 40x50 | 40x50 |
| Main motor power | KW | DC/AC:55 | DC/AC:55 | DC/AC:55 |
| Overall size of machine | CM | 540x470x480/520 | 605x440x493/533 | 690x510x480/ 520/570 |
| Weight of machine | T | 38 | 40/42 | 50/52 |
| Ram section | MM | 240x240 | 240x240 | 240x240 |
