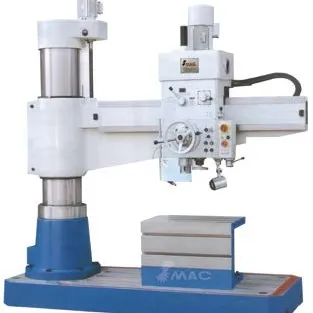

New General Type Hot-Selling Hydraulic Radial Drilling Machine Spot Bore 63
| US$7,050.00-7,890.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZB3060X16
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
>200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wood Case
Specification
2490 x 1050 x 2780mm
Trademark
MacTech
Origin
Jiangsu
HS Code
8463200000
Production Capacity
50pieces/Year
Product Description
Product DescriptionRadial Drill Presses -
perfect in every detail, powerful, rigid and easy to handle
•base, column, boom and gear head are made of premium
high-quality cast
•major design features include a large column and a highly torsion-resistant boom
•boom height adjustment via a powerful motorized drive and vertical spindle
•the boom lifting gears run in an oil-bath for maximum reliability and minimum wear
•advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
•swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
•the gears feature hardened and precision-ground chrome- nickel steel gears for smooth and low-noise operation
•all gear pats are lubricated reliably via oil pump
•the main spindle runs on precision bearings and features an automatic spindle brake
| Specifications | ZB3060X16 | |
| drilling capacity in steel | mm | 62 |
| tapping capacity(steel / casting) | M 46 / M 50 | |
| drilling depth | mm | 315 |
| Working area | ||
| dimensions,machine table | mm | 2400 x 1000 x 200 |
| dimensions,cube table | mm | 500 x 710 x 500 |
| spinde-to-clumn surface distance | mm | 350 - 1600 |
| spinde nose-to-table distance | mm | 350 - 1250 |
| drill head travel (horizontal) | mm | 1250 |
| arm stroke (vertical) | mm | 585 |
| column diameter | mm | 350 |
| Headstock | ||
| speed range | rpm | 38 - 2000 |
| spindle mount | MT 5 | |
| Feed | ||
| feeds | mm/rev | 0.06 - 1.00 |
| Drive Capacities | ||
| main motor rating | kM | 4 |
| lift motor | kM | 1.5 |
| Dimensions / Weight | ||
| overall dimensions (LxWxH) | mm | 2490 x 1050 x 2780 |
| weight | kg | 3800 |
