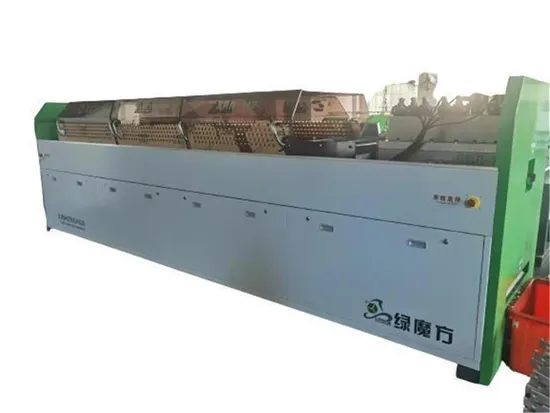

Good Quality Light Gauge Steel Keel Framing Machine
Basic Info.
Model NO.
XHH-C140
Certification
CE, GS, ISO9001
Customized
Customized
Condition
New
Control Type
Ipc Computer Controlling System
Automatic Grade
Automatic
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Control System
Ipc Computer Controlling System
Material for Puncher
SKD-11
Material for Cutter
SKD-11
Shaft Material
SKD-11
Motor Power
11kw
Hydraulic Motor Power
11kw
Voltage
380V/ 50Hz/ 3pH
Material Strip Thickness
0.8-1.5mm
Effective Width
140mm
Molde Change
Auto Change
Transport Package
Paking
Specification
5100*1600*1100mm
Trademark
XHH
Origin
Fujian, China(Mianland)
HS Code
84552290
Production Capacity
20stes/Month
Packaging & Delivery
Package Size
510.00cm * 160.00cm * 110.00cm
Package Gross Weight
4000.000kg
Product Description
Main Technical Data
| Size | C140 |
| Dimension | 5100*1600*1100mm |
| Main Servo Motor Power | 11KW |
| Hydraulic Motor | 11kw |
| Forming Steps | 12 Steps |
| Forming Speed | 4-7tons/8hours |
| Voltage | 380V/50HZ/3PH |
| Effective Width | 140mm |
| Material Width | 235mm |
| Flange Height | 41mm |
| Lip | 10mm |
| Material Thickness | 0.8-1.5mm |
| Tolerance for cutting and punching | ±0.5mm |
| Tolerance for forming | ±1mm |
| Control System | IPC Computer Controlling System |
| Design Software | Vertex Software |
| Material for All Roller | SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers |
| Material for Shaft | SKD-11 |
| Material for Puncher | SKD-11 |
| Material for Cutter | SKD-11 |
Main Accessories
| 1 Main Forming Machine |
| 2 5 Tons Hydraulic Uncoiler |
| 3 Servo Motor System |
| 4 IPC Computer Controlling System (Lenovo Laptop) |
| 5 Production Software (1set) |
| 6 Design Software-Vertex,forever using license |
| 7 Hydraulic Automatic Punching Device (Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole) |
| 8 Hydraulic Post-cutting Device (Material:SKD-11) |
| 9 Automatic Printing Device |
| 10 Run Out Table (4m) |
| 11 Operation Manual |
Rollex-2020
XHH C63-140
XHH-C75
XHH-89-5S Model
XHH-89-JC Model
XHH-160 Model
XHH-310 Model
Q1.Are you a trading company or manufacture.
1A: We are a factory.
Q2. Do you provide samples ? Is it free or extra ?
2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge
3Q: Where is your factory located?
3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
4Q: Can you make the machine according to my design or prototype?
4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
5Q: How can I trust you that machines pasted testing running before shipping?
5A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
6Q: Do you provide installing and training overseas?
6A: Overseas machine install and worker training services are optional.
7Q: How is your after sales support?
7A: We provide technical support on line as well as overseas services by skillful technicians.
8Q: Guarantee period:
8A: Within one year since the date of finishing commissioning.
