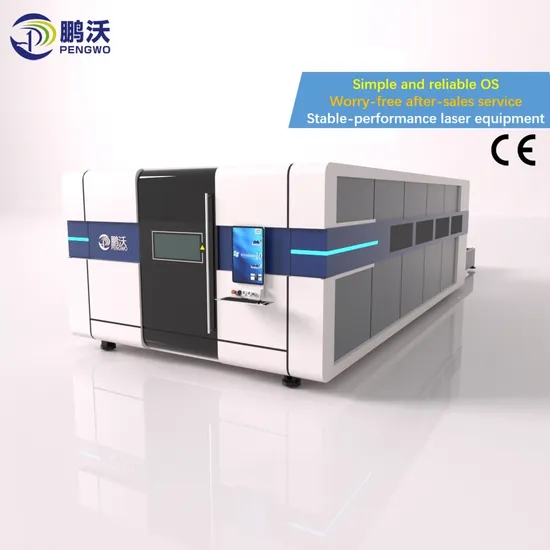

Cost-Effective Enclosed Fiber Laser Cutter for Automotive Panels 6000W 12000W 2000X4000 Exchange Platform

Product Description

Product Description
1. High-rigidity machine bed, exclusive high-temperature CNC electric furnace standard annealing process annealing treatment, can ensure the accuracy of the machine tool for a long time
2. The side design of the machine tool slides open, which is easy for man-machine access and saves space
3. The fiber laser has a high electro-optical conversion rate, with a conversion efficiency of 30%, which can greatly save power consumption during work and has extremely low operating costs
4. The automatic exchange platform can reduce the waiting time of the machine tool during loading and unloading, and improve efficiency
5. The cutting edge quality is smooth and flat, with little deformation
6. Fast cutting speed, extremely low operating cost, and quick return on investment Detailed Photos
RAYTOOLS Laser Head
Auto-focus laser head
Strong and curable
Accurate and rapid
Long service life

CYPCUT control system
Easy to use
Various file editing functions
Support remote control
Real-time alarm and protection
DELTA servo motor
High accuracy
High-speed performance
High adaptability&stability
Timeliness,short dynamic response time of motor
Taiwan guide rail
Lower noise
Wear-resistant
Smoothly,enable fast speed
Products pictures

Product Parameters

Name&Model	Laser Cutting Machine G2040F-C/G2060F-C
Working Area	2000mm*4000m/2000mm*6000mm
Laser Power	1500W/2000W/3000W/6000W
Machine Structure	Stable & strong welded bed with high temperature annealing
Beam	Aviation aluminum/Integrated cast aluminum beam
Applicable Material	Carbon Steel Stainless Steel Etc( Metal Laser Cutting Machine )
Laser Source Brand	MAX/RAYCUS
Key Selling Points	Automatic
Warranty	2 years
Condition	New
Moving Speed	120m/min
X axis travel (mm)	2030
Y axis travel (mm)	4050/6050
Z axis travel (mm)	100
Max acceleration	0.8G
Position Accuracy	±0.03mm
Repositioning Accuracy	±0.02mm
Computer	Industry Computer
Transfer method	Gear rack dual drive
Working Voltage	380V,3phase,50hz/60hz(customized)
Dimension	10900*3410*2225
Graphic Format Supported	AI, PLT, DXF, BMP, DST DWG, LAS, DXP
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Applicable Material	Metal Steel Carbon Copper

Company Profile
Shandong Pengwo Laser Technology Co., Ltd. is located in Dezhou City, Shandong Province, founded in 2005, is a professional engaged in laser processing equipment research and development, manufacturing and to provide customers with laser processing intelligent manufacturing solutions service providers. After years of continuous development and technology accumulation, the company has become a leading domestic supplier of laser application equipment solutions. At present, it has two production bases in Tianquxin District and Pingyuan County, covering an area of more than 80,000 square meters.
The main products of the company are middle and high power laser cutting equipment, laser welding equipment, laser cladding equipment and other laser processing equipment.
Installation Instructions
The production of laser cutting machines, from machine welding to installation and commissioning, is completed by engineers and masters with excellence. The technicians are proficient in laser cutting technology and can accurately set cutting parameters to achieve the best cutting accuracy and surface quality. At present, we have a computer numerical control, and the brand of this equipment is one of the best brands in China. A very important part of this "gantry milling" machine is called "360-degree fully automatic side milling surface", which can achieve 360° side milling, thereby enhancing beauty, quality and service life. During the assembly process, the "precision instrument" and "dial indicator" are used to measure three times to control the accuracy of the machine.

After Sales Service
Installation training (3 options) :
A. We will provide installation, operation, maintenance and troubleshooting training videos and user manuals in English, as well as technical guidance via email, fax, phone /Messenger/WhatsApp, etc. if you encounter problems with installation, use or adjustment.
B. You can come to China for training. We will also provide accommodation during the training.
C. China's strong after-sales service team. Our engineers (staff) can speak English to communicate and solve problems. Flights can also be arranged.
Training time: 3-7 working days (recommended):
For installation, commissioning & training (maintenance and operation of the machine) to the user's personal work site, it shall be provided free of charge by the supplier. The Supplier's airfare (round trip), food, accommodation, local transportation, translation, Internet, communication and visa costs at the Buyer's site shall be borne by the Customer in accordance with the actual documents.
FAQ
Q1. When was your factory established?
We have been specialized in the R&D, manufacturing and intelligent manufacturing solutions of laser processing equipment since 2005, mainly focusing on laser processing equipment such as fiber laser cutting, laser welding equipment, laser cladding equipment, etc.
Q2. What should I do if there is a problem with this machine during the warranty period?
The quality assurance period is 12 months from the date the goods arrive at the destination port. Except for man-made damage, we are responsible for providing accessories free of charge during the warranty period. After the quality assurance period, if you need to repair or replace parts, you must pay.
Q3. How to install and use?
We will provide training videos and English user manuals for installation, operation, maintenance and troubleshooting for the machine. When you encounter installation, use or adjustment problems, we will provide technical guidance by email, fax, telephone/Messenger/WhatsApp, etc.
Q4. What should I do if there is an after-sales problem?
You can directly describe your problem to the after-sales staff. China's strong after-sales service team. Our engineers (employees) can communicate and solve problems in English, and can be arranged once a day per person when you need it. If I need to go to your place to help, I will quickly arrange to go there and quickly fly to help you.
Q5. How about wholesale price?
If you are a wholesaler, distributor or agent, please contact us to get wholesale price.
