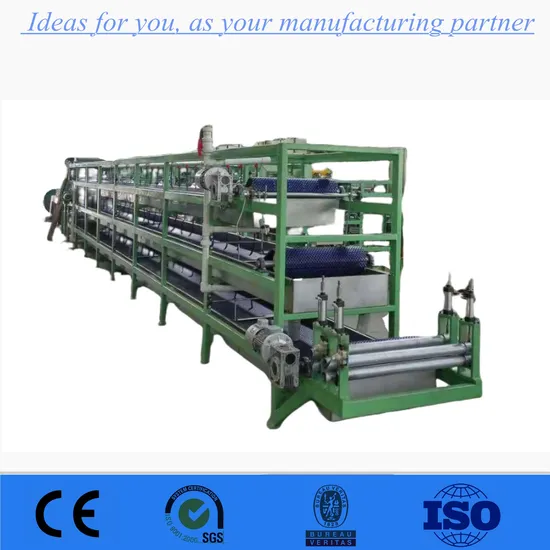

Tread Cooling/Winding Line for Tyre Building Machine - Rubber Sheet Cooling Equipment

Product Description

Tread Cooling/Winding Line for Tyre Building Machine - Rubber Sheet Cooling Equipment
Product Description Used for cooling, cutting and collecting tire thread or sidewall of bias tire and radial tire after extrusion.
Structure features:
Consisting of take-off, contraction, continuous weighing, marking, calendaring and sticking base system, cooling, speed set point setting, cut-off, accelerated separation, water blow-off, inspection, spreading and spraying rubber cement. Take-up device etc. And designed according to the domestic and foreign advanced technologies, with speed regulation by A. C. frequency conversion, PLC control, entire line synchronization, no stretching for products.
Product Parameters

Line speed	5-25 m/min
Width of production roll	650mm
Extraction height	900mm
Pick-up temperature	<=40°
cutter	Max. Thickness of the thread cutting:20mm
Max. Cutting width	450mm
Range of cutting angle adjustment	35°±5°
Length tolerance of the cutting component less than	±3
Cutting frequency	10-15cuts/min
Pressure of comp0ressed air	0.6-0.8Mpa
Total motor power	23.3kw
Cooling water consumption	50-60m³/h
Overall size	28000x2000x2800
Weight	20000kg
