New 16m Awp Xga16 Small Articulated Boom Laerial Work Platform Price Sales

Product Description

Product Description

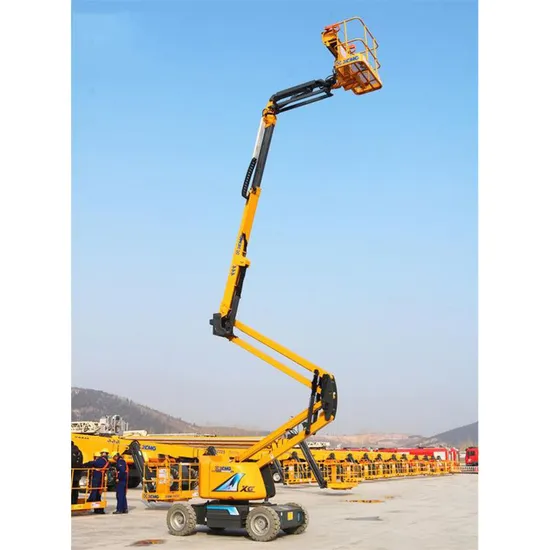

XGA16 16m articulated mobile small boom lift aiming to satisfy customers' requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
Advantages and highlights:
1.Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles;
2.Compact and narrow turntable eliminates tail swing and improves operation efficiency;
3.Work platform is enabling to extend out, enlarging the work space, together with the foldable fence making the transportation easier;
4.Full - range work; direct and friendly control panel easy to control;
5.Platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.

Detailed Photos
Product Parameters

Item	Parameter
Parameters of traveling state
Overall dimensions (L × W × H)	6.69×2.26×2.13 m
Working platform overall dimensions	1.83×0.76×1.15 m
Max. speed	6.12 km/h
Max. gradeability	≥30%(2WD) ≥45%(4WD)
Min. external turning radius	≤4.5m
Ground clearance/m (centre)	0.41 m
Wheelbase	2.1 m
Total mass	6900 kg
Main Operation Performance Parameters
Rated working height	16.05m
Max. platform height	14.05m
Max. working range	8.22m
Max. net spanning height	7.14 m
Scope of luffing of No. 1 arm	0°~60°
Scope of luffing of No. 2 arm	-9°~75°
Scope of crank arm luffing	-60°~80°
Scope of platform swing	160°
Slewing angle	355° discontinuous slewing
Slewing radius of turntable	1.145 m
Max. Load capacity	230 kg
Max. Tail swing	0 m
Control system	12V DC proportional control
Emergency control unit	12V DC battery
Tire	33×12-20 off-road solid tire
Weighing detection	Standard configuration
Axle balance system	Standard configuration
Working speed
Platform lifting/lowering speed	0.1~0.3m/ s
Extending/Retracting speed of Boom No.2	0.1~0.3m/ s
Slewing speed	0.5~1r/min
Engine Parameters
Engine manufacturer	British Perkins
Engine model	Perkins 404D-22
Engine rated power	38KW/3000rpm
