Affordable fibre laser cutting machine metal aluminium / laser cutting cutter

Product Description

Detailed Photos

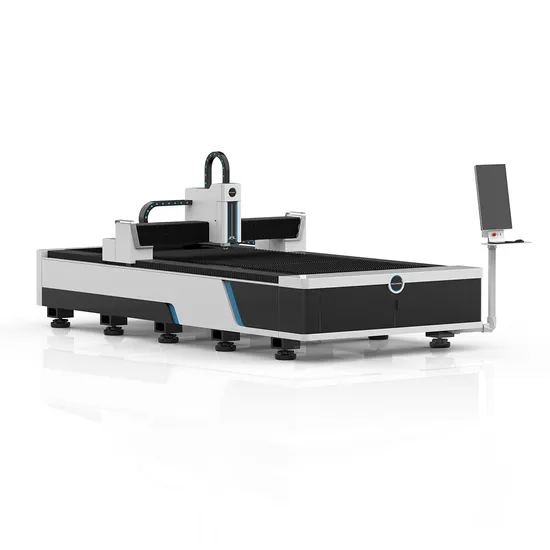

Laser Cutting Machine
(1) Famous brand in China
(2) Laser cutting head with high precision fiber laser dedicated anti-collision cutting head to ensure high cutting accuracy and cutting efficiency

electronic components
electronic parts; high quality ensures the possibility realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop control method, and that makes moving positioning mechanism operate smoothly. reliably and free of maintenance




Water chiller, Cooling laser device
Protect the the laser device in normal temperature, avoid moistureCooling laser head:When machine working, laser head will produce large heat, water chiller cooling laser head to make sure the lens and mirrors avoid breaking because of the heat.
Laser Source
---Brand:MAX RAYCUS JPT IPG
---100000hours life time
---estable,cost-efficient
---Free maintenance
Control system
brand :CYPCUT Details:edge seeking function and flying cutting function ,intelligent typesetting ect supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...
Sample
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate(tube), Carbon Steel, Alloy Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate,Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine. Application Areas
Metal cutting, locomotive manufacturing, machinery industry, household appliance manufacturing, hardware tool processing,decorative advertising and other machinery manufacturing and processing industrie Product Parameters

1	Model	LM3015F
2	Cutting working area	3000x1500mm
3	Laser Generator	Raycus / IPG /MAX
4	Transmission system	Gear + rails
5	Fiber Laser Power	1000W / 2000w / 3000w / 6000w/8000w
6	X.Y axis location accuracy	±0.01mm
7	X.Y axis repeat location accuracy	±0.01mm
8	X.Y axis max moving speed	120m/min
9	Laser wave length	1064nm
10	Machine color	Support custom made
11	Gross weight	3500KG
12	Machine Warranty	3 years

Company Profile
Gold mark found in 2013,is one high-tech enterprise with focus on developing,manufacturing and servicing for laser equipment and system 2013 Jinan was established 2015 developed rapidly , product sales exceeded 800 sets 2016 Laser Cutting Division was established 2018 over 2000 sets of machines been sold, beeing one of the well-known manufacturers of laser equipment in the world 2020 laser cutting factory which size over 8000 square meters was established in Jinan. Sales keeping growth rapidly, sales reach 120 million RMB. 2021, independently developed and produced the first 12,000 watt high-power laser cutting machine 2022, more than 10sets 12000W high-power laser cutting machines and 5sets 20000w laser cutting machines were delivered Laser Max with a decade of cumulative laser equipment design and manufacturing expertise Gold Mark focus on laser cutting machine, laser welding machine, laser cleaning machine, laser marking machines, customized and other series of more than 50 kinds of industry specific laser solutions.Having long-term with United States,Russia,Mexico,Britain,Germany,Brazil,Korea,Turkey,India,Indonesia,Saudi Arabia and more than 50 countries' company in R&D cooperation Bulk purchases to obtain greater support from suppliers, lower purchase costs for the same product, and better after-sales policies. Gold Mark is willing to share our advantages and resources with partners, and warmly welcome to cooperate with us

After Sales Service
What kind of support you can get from Gold Mark? 1.. 3 year warranty,Provide a full range of technical support for life.
2. From monday to sunday 9am to 22pm. Experienced technician to guarantee lifetime online support(by whatsapp /skyper /wechat /email). So there is no need to worry about technical support due to time difference.
3. Support local after-sales service. up to 2022, we have offered onsite to these countries and areas: Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc..

Packaging & Shipping
1. Cleaning the fiber laser cutting machine.2. Wrap all the laser cutting machine parts with bubble film and plastic film.3. Fix the machine with iron frame.4. Wooden box sealing the fumigated plywood portection is finished.5. Forklift the packed machine to the container. 6. Choose the optimal routes and transportation mode according to the distance.
The following are other hot-selling products of our company, welcome to consult
The area of jewelry welding machine The area of laser engraving machine
The area of laser welding machine The area of 3in1 laser welding&cleaning&cutting machine FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have . At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q: I don't know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.

Q: I don't know which one is suitable for me ?
A :just tell us below information 1) Max work size:choose most suitable model. 2) Materials and Cutting thickness:Power of laser generator. 3) Business industries:We sell a lot and give advice on this business line.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

Q: How do your factory do regarding quality control?
A: Quality is priority. Each laser machine will be tested by 24 items.After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE.

Q: I knew nothing about this machine, what kind of machine i should choose? A:Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.

Q: If some problems happen to this machine during warranty period, what should I do? A:We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
