High Precision 1 2 3 4 Rows Potato Tomato Large Potato Harvester

Product Description

Product Description
The 4UX-180B Potato harvester is a piece of essential equipment for harvesting commercial and seed potatoes in large farms and large planting areas. It can complete the excavation, conveying separation and collection strip laying operations at one time. It has the characteristics of high harvest efficiency, no hurt potato, low breaking rate, high rate of bright potato, long service life and so on.

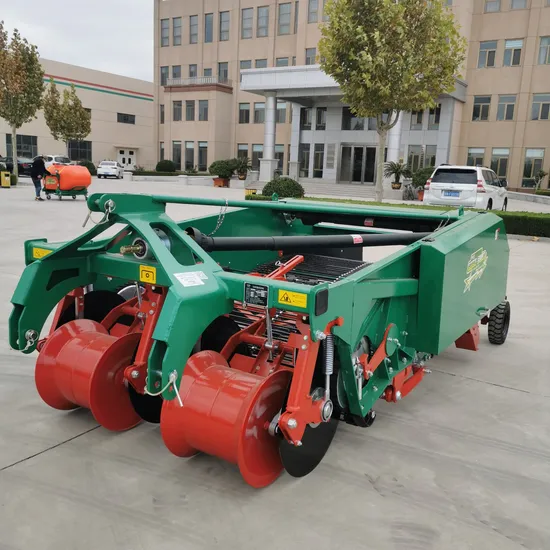

Detailed Photos
Product Parameters

Structural Style	Suspension type
Overall Dimension (length×width×height)	3880*2215*1215mm
Machine Weight	1588kg
Tractor Engine Power	88.2~118kW
Working Ridges	2
Working Width	1800mm
Adapt to Ridge Width	≤900mm
Digging Depth	150~300mm
Digging Shovel Type	Combined tip shovel
Potato-exposing Rate	≥96%
Injury Rate of Potato	≤1.5%
Breakage Rate	≤2%
Conveying Device Type	Conveyor Chain Grate Sieve

Certifications
Our Advantages
1. The separation effect of potato soil and potato seedlings is good. The front floating disk knife is used to cut the surface along both sides of the potato ridge together with weeds, which is conducive to digging parts and preventing the machine from winding and blocking the stems and weeds on both sides; The shape suppression and depth limiting device not only crushed the hard shell of the ridge surface, but also made the potato soil loose and improved the separation effect of potato soil. Moreover, it can ensure the depth of digging shovel, dig potato fully and do not hurt potato, reduce power consumption. Two-stage wave grid transmission separation screen, the material is made of high-performance alloy steel through a special heat treatment process, with good elasticity, high strength, good wear resistance and other characteristics, so that the potato soil separation effect achieves the best, sticky, sandy soil can be harvested.

2. Low breaking rate: the design of two-stage grille-type transmission and separation device is adopted. Different vibration amplitude is scientifically adjusted according to the content of potato soil at different stages of transmission and potato movement track. The driving wheel is rubber teeth, meshing well with the steel grid, light wear, long life, reliable use, potato breakage less, and the potato peel rate is reduced within 2%.

3. Exposing potato rate is high: the bottom of the installation of the suppression roller, can be harvested ridge surface compaction, separation and cleaning after the potato transport to the rear of the machine, by adjusting the width of the baffle, the potato set spread on the flat ground, Ming potato rate is further improved, greatly convenient late pick up.

4. Wide range of adaptation. The supporting power is 88.2 ~ 118, which is suitable for the four-wheel tractors owned by most farmers at the present stage. It has the characteristics of wide adaptation power, less investment and quick effect.

5. The machine runs briskly without vibration, does not block grass, leaks soil quickly, and has a long service life. The excavation Angle and the lifting Angle of the conveying separation device are designed in the same way to solve the problem of soil accumulation after shoveling. The machine adopts a laser cutting machine, precise and beautiful, high concentricity, high precision sealed bearing, anti-wear rubber wheel, never into the soil, long service life of the machine.
