Double Station 2 Cavity Extrusion Blow Molding Machine for Making 5L 12L Detergent Bottles

Product Description

2+2 Plastic 5liter Detergent Bottle Blow Molding Machine Product Description
Liquid detergent or soap sold on the market mostly packed in plastic bottles with max 5 liter capacity. HDPE is the major plastics used for producing the detergent bottles.

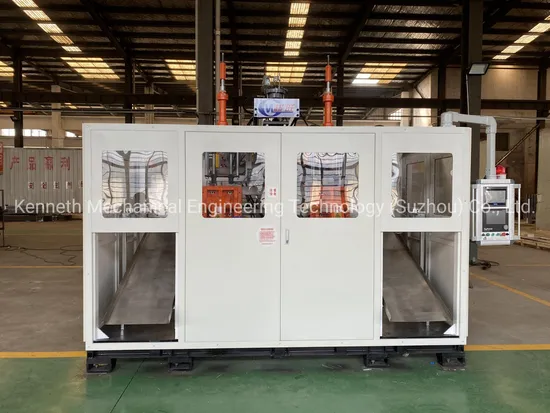

Detailed Photos
Product Parameters

Max. Product Volume	12L(Single head)
Production Speed	*1000~1200pcs/hr*
Machine Dimension( L*W*H)	4900*3100*3200mm
Machine Weight	15ton
Screw Diameter	90mm
Screw L/D Ratio	25
Screw Drive Power	37kW
Screw Heating Power	9.1kW
Heating Zone Qty	3
Max. Output of HDPE	130kg/hr
Clamping Mechanism	*Toggle Type*
Oil Pump Motor Power	15kW(Servo motor)
Oil Tank Capacity	80L
Clamping Force	158kN
Platen Clamping Distance	270~620mm
Max. Mould Size(W*H)	590*500mm
Head Qty	4/2
Central Distance	120/240mm
Parison Controller	MOOG 100 Points
Max. Die Diameter	220mm
Die Heating Power	8.8kW
Heating Zone Qty	9
Blowing Pin	Top Blowing Pin Unit(4*2)
Blowing Pressure	0.6MPa
Air Consumption	0.8m3/min
Cooling water pressure	0.3MPa
Water consumption	60L/min

Extrusion blow molding machines are used for making HDPE detergent bottles with an average cycle time of 22 second. Thus, it is easy to configure the station and parison head number or mold cavities of one blow molding machine, and the number of blow molding machines as per the production rate demand from bottle manufacturer.
In order to meet the raising demand on the high productivity blow molding machine, Kenneth team developed a 2+2 5L blow molding machine with a production rate of 650 bottles per hour. It is equipped with a double parison die head, two sets of 2 cavity mold and a plasticizing system with the screw of 80mm diameter.
Production rate: 600~700pcs of 5 liter HDPE bottles per hour
Fully automatic production
User friendly control&operation
Full aspect of human safety protection
Plasticizing capacity: 130kg/hr HDPE
Hydraulic station with energy accumulator provides powerful hydraulic force
Stainless steel made slides for collection of finished bottles
